Automatic Frameless Handicap Swing Door Opener with Wireless&Wired Push Button For Sale

Olideauto Automatic Wireless Handicap Door Opener Swing Opening Frameless Glass Door Operator with 2pcs Wireless&Wired 2-in-1 Handicap Push Buttons

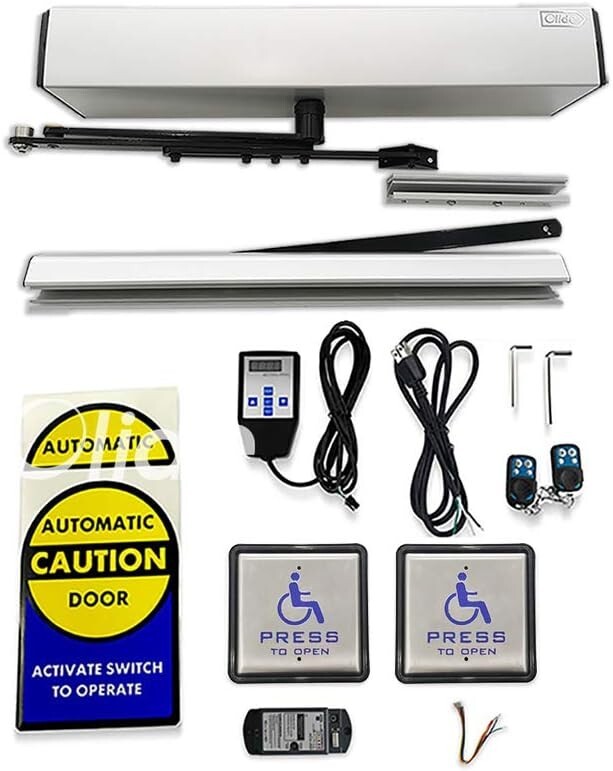

One complete unit door opener automatic Includes

• 2 pcs 100% Wireless and not hardwired remotes,working frequency is 433.92MHz
• 2 pcs 304 Stainless steel square 4.5\'\'2.4G wireless&wired handicap push switches and 1pcs high stability receiver Olide-510F
• 1pcs push arm for outswing glass door and 1pcs push arm glass clamp
• 1pcs pull arm for inswing glass frameless door
• Parameters adjusting hand programmer
• 2 pcs auto door attention stickers
• Screw and screw anchors
• Black and white manual
• US plug and cords

The Olide-120B is used for frameless glass swing door,automatic glass french door that is activated by wireless&wired handicap push buttons

This swing glass door system operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians

With advanced wide voltage technique,it makes the handicap french door Olide-120B highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and durable than ordinary single input voltage.

The Olide-120B is a french glass door kit for both inswinging and outswinging doors and two wireless&wired stainless handicap push to exit buttons for automatic doors. This automatic glass door is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.

Both inswing and outswing opening door available,you will get both of inswing push arm and outswing pull arm
Easy Program and Debug Front Door Automatic Door Opener Closer with 1PCS Wired Surface-Mounted Face Recognition Sensor via Handheld ProgrammerAlways Keeping Door Open Available via adjust parameter\"hold-open time\"to\"--\"
Integrated High-Efficiency Working Controller and Wide Voltage, Durable MotorKnowing More Details

Large Wireless Fob Keys for Olide-120B

• The remotes that come in this kit are Wireless and not hardwire
• The remotes working frequency is 315MHz
• You can add up to 15 wireless devices per automatic door opener

Wireless Handicap Push Button Olide-510

• Wireless and wired mode can be easily switched
• Power Supply:3V(2*1.5V AA battery)
• Emission Current:12.4mA
• Life of Battary: more than 20000times
• Emission distance: more than 30m
• Static current :≤10UA
• Working of Handicap Push Button Olide-510F
  • Power Supply:AC/DC 12-30V
  • Wireless Receiver:3A 30VDC
  • CE Certification,FCC approved
  • Static current:30mA
  • Buzzing open or close can be adjusted there

  Technical Parameter

  • Swing application: one-way inswing or outswing open, single leaf and double leaf standard doors
  • Voltage: 110-220 VAC +/-10%
  • Motor: DC 24V brushless motor
  • Power Consumption: 50W
  • Opening Time: 3-7 sec. @ 90 degrees
  • Hold Open Time: 1-30 sec. Adjustable
  • Max. Door Frame Depth:200mm / 7.87\"(the data is only applicable to work with push arm)
  • Door Width: Max. 1200mm / 47.2\" Min. 660mm / 26\"
  • Max. Opening Angle:120 degrees
  • Environment Temperature: -20C to 50C -4F to 122F
  • Operation noise: Less than 55db
  • Opener size: style=\"box-sizing: border-box; list-style: disc; overflow-wrap: break-word; margin: 0px;\">Opener weight:9.5kg/ 20.9 LBS
  Trouble Shooting
  • Symptoms 1Motor always spin slowly and not stop
  • Remedies 1Please install the whole item on the door to test,the door opener need to find a closing position firstly, if not installed, the motor just keep spin very very slowly in one direction and not stop. The system will go to a properly operation after find a closing position. If want to test on your workbench, you can install a arm, and manually stop in a position. (As closing position), And then give system a open signal.
  • Symptoms 2The door opens in wrong direction and machine does not work
  • Remedies 2Power off, manually open the door in half open,then power on, the door goes to closing direction, if not, change the open direction
  • Symptoms 3Rebound when closing the door,repeat open and close actions
  • Remedies 3Clear the obstacle away or increasing the closing force by hand programmer
  • Symptoms 4Electric Lock not work
  • Remedies 4Please press the lock button on the remote for first close
