TITLE

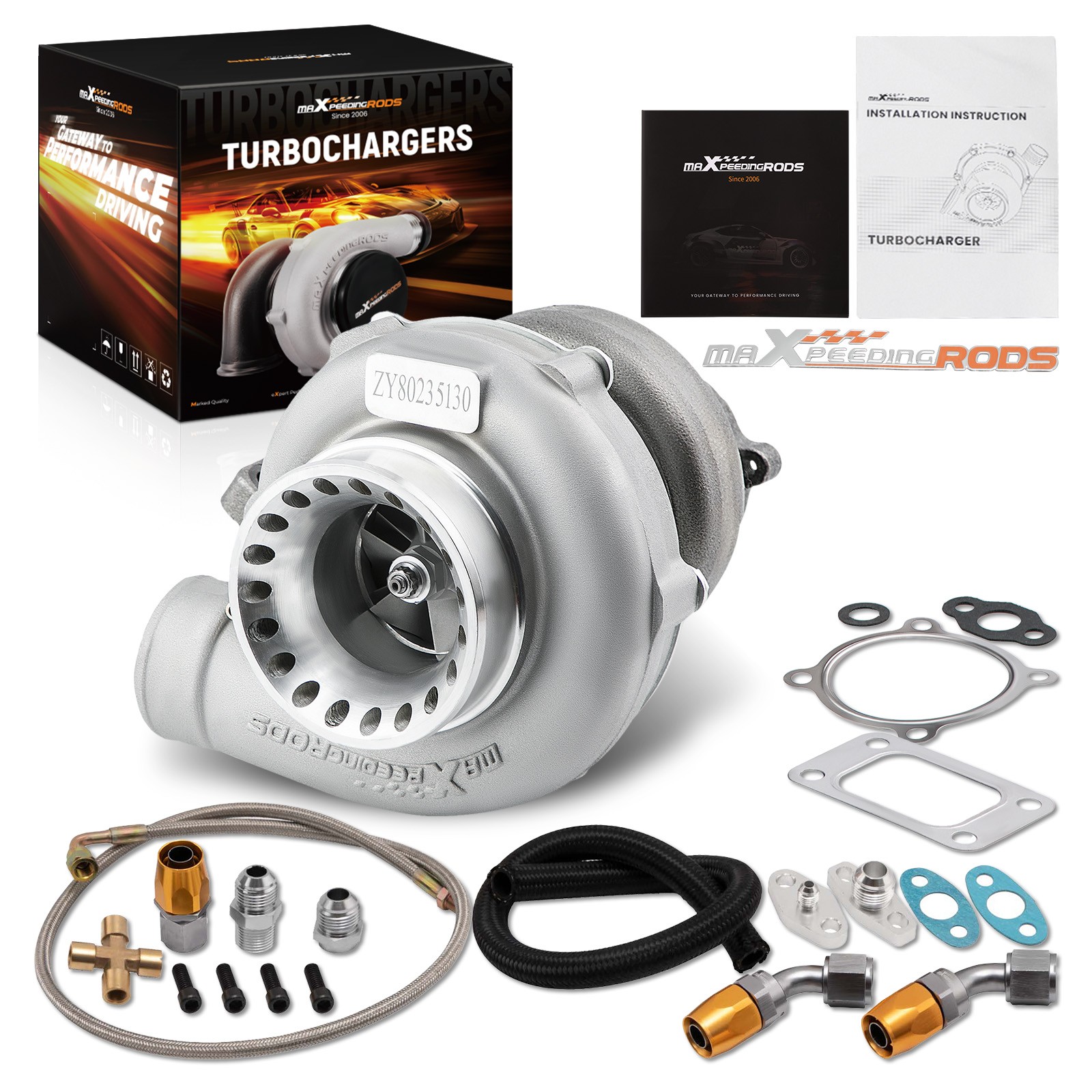

GT35 GT3582 Universal Turbo Charger T3 4 Bolts Flange .7 A/R .63 A/R W/Oil Lines

DESCRIPTION

All modifications must be installed by licensed mechanics and in compliance with your local modification style="text-align:center">GT35 GT3582 Universal Turbo TurbochargerCompressor AR.70/63 600HP T3 Flange Water-Oil Cooled

& Oil Drain Return Feed Line

for 2.5L-6.0L Engine

This turbo features a T3 flange. To mate with T4 manifold, a T3-T4 adapter is required. The adapter extends the inlet assembly length. Please double-check available clearance prior to installation to avoid fitment issues.

Turbo Application:

• Bigger HP Applications, perfect for all 4/6 cylinder and 2.5L-6.0L engines
• Horse Power:Boost Horse Power up to 600HP
• Cooling Type:Water + Oil

Turbo Specific:

• Bearing Type: Floating/Journal Bearing
• Thrust bearing: 270 degree
• Cooling Type: Water + Oil Cooling
• Horse Power: Up to 600HP
• Turbo Type: Individual
• Wastegate:W/O Wastegate
• Oil feed/inlet: M10*7/16-24
• Oil drian/outlet: M14.1 & 2*M8*1.25
• Water inlet/outlet: M14* 1.5
• Maximum PSI: 22

Turbo Compressor:

• Compressor Trim: 56.9
• Compressor A/R: 0.7
• Compressor Inducer Diameter: 61.5mm
• Compressor Exducer Diameter: 81.5mm
• Compress Inlet Size(Air intake): 4 inch (103.5mm)
• Compressor Outlet Size: 2.5 inch (63.6mm)

Turbo Turbine:

• Exhaust Inlet Flange: T3 Flange
• Exhaust Outlet Flange: 4-Bolt
• Turbine Trim: 84.2
• Turbine A/R: 0.63
• Turbine Inducer Diameter: 68mm
• Turbine Exducer Diameter: 62.4mm

Turbo Oil Return / Feeding Line Kit:

Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the Turbocharger to the oil pan.
The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.
Turbo Oil returen /Feeding line kit：
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the Turbocharger to the oil pan.
* The kit provides a anodized look
* gives a best cooling on your turbo and long lasting life.

* Oil Return Line : Length: 600mm || AN10
* Oil Feed Line : Length: 1000mm || AN4 (7/16"-20)|| 1/8npt

Condition: 100% Brand New

Warranty：2 Year

Accessories: You will get exactly as shown in the picture above

NOTE:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
