Icm Furnace Control Board Icm292:
$69.99

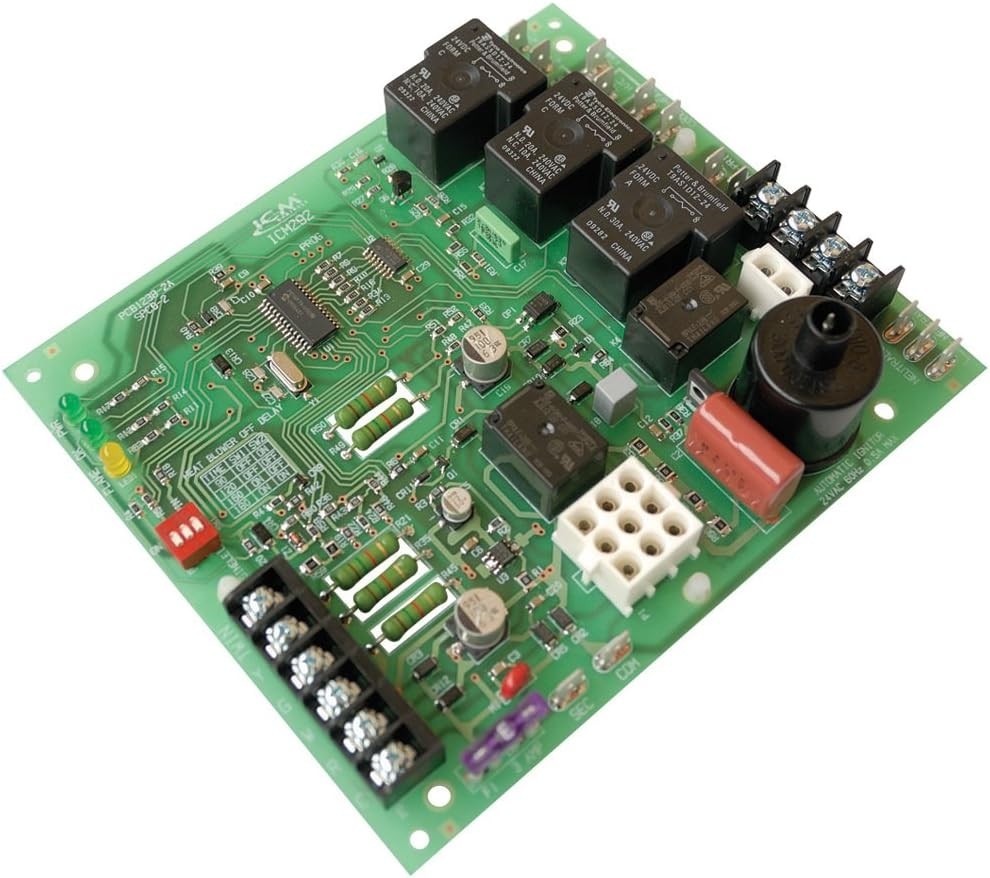

ICM Furnace Control Board ICM292ICM Furnace Control Board ICM292 Overview The ICM292 is a gas‑ignition control board used as a low‑cost replacement for Rheem 62‑24140‑04‑type furnace controls. It is a microprocessor‑based Direct Spark Ignition (DSI) board that manages inducer motor, air cleaner (if equipped), humidifier (if equipped), spark ignitor, and gas valve, while monitoring flame sensing, system switches, timing, and lockout. Key features - Direct Spark Ignition (DSI) control board.
- Controls inducer motor, blower, air cleaner, humidifier, spark ignitor, and gas valve.
- Monitors trial for ignition, flame sensing, timing, system switches, and lockout.
- 100% lockout safety feature.
- Compatible with LP or natural gas systems.
- Green “PWR” and “OK” LEDs plus yellow “FLAME” LED for status and fault indication.
Timing - Pre‑purge: 30 seconds.
- Trial for ignition: 7 seconds.
- Retries: Two groups of two, 30 seconds delay within group, 3 minutes between groups.
- Lockout: 1 hour.
- Post‑purge: 90, 120, 160, or 180 seconds selectable.
