Intellivision Composite AV Board with RCA Outputs and 3D Printed Back Panel
⚠️ Please note that the Intellivision console is NOT included.
This listing is for a self-contained composite AV board with RCA outputs and a custom 3D printed back panel designed for the original Intellivision console.
The back panel is printed using PLA filament at standard print speeds to help ensure a clean finish with minimal imperfections. Available colors include:
The back panel design was originally created by Retro Game Revival. While you are welcome to print the panel yourself, I include it as part of this package to help make installation easier and cleaner.This is a NO CUT / NO DRILL solution designed to work with the existing console layout.
Step-by-step installation instructions will be provided after purchase.
The AV board comes fully assembled as shown in the photos and includes double-sided tape underneath for easy mounting inside the console housing.
This setup works alongside the original RF adapter, so there is no need to remove it or leave unused holes in the console.
If you would rather have the work professionally installed, I also offer installation services with audio output and power LED options available. Please see my other listings for details.

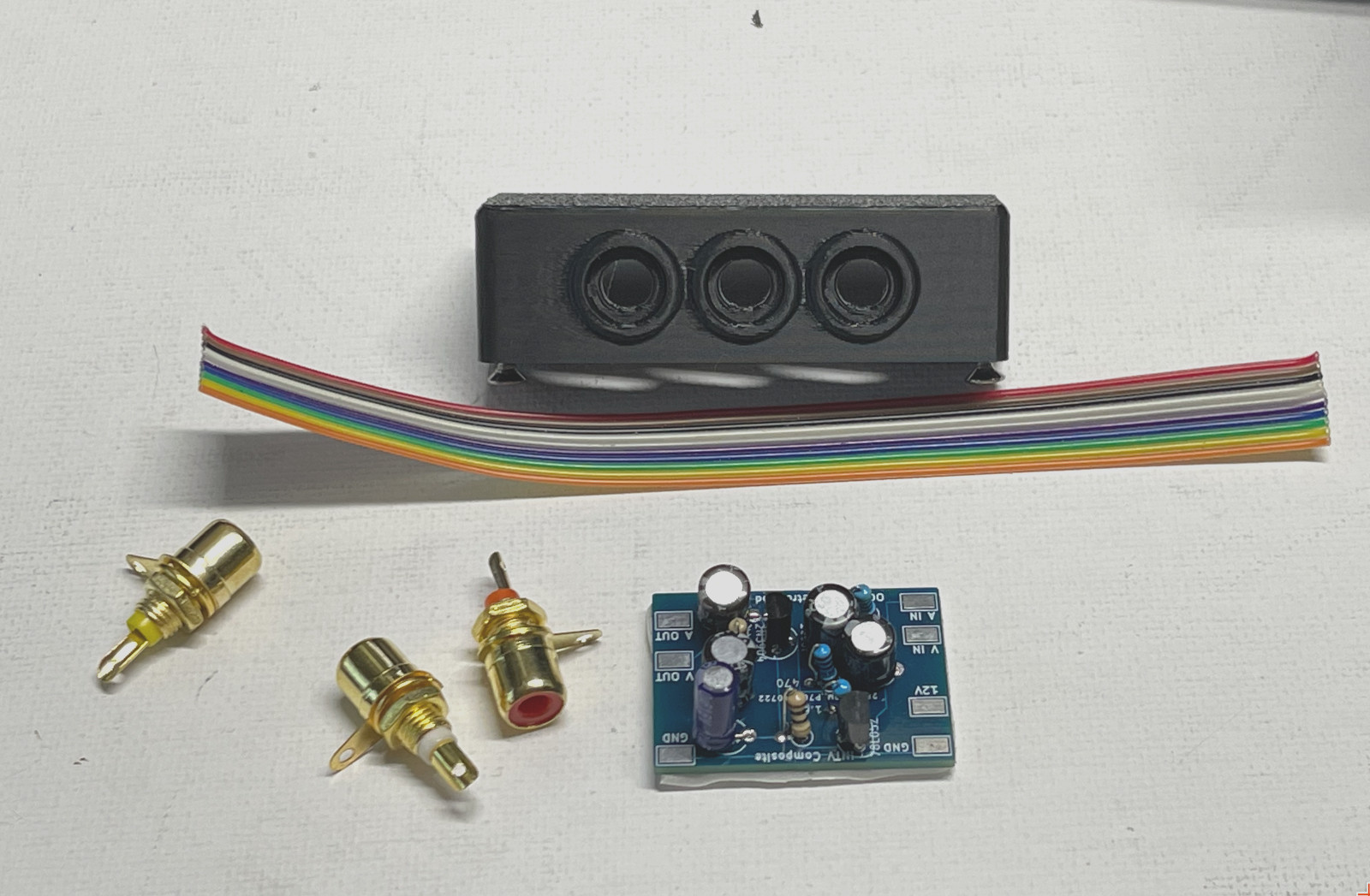

Included in this package:- 1 fully assembled composite AV board (see photos)
- 1 custom 3D printed back panel
- Installation wire
- 3 gold-plated RCA connectors (video + dual mono audio)
- Link to step-by-step installation guide (emailed after purchase)
If you have any questions, I am also available by email or Discord to help during installation if additional assistance is needed.
Tools Required (NOT INCLUDED)- #2 Phillips screwdriver
- Small Phillips screwdriver
- Small flat-head screwdriver
- Soldering iron (fine tip recommended)
- Solder sucker or solder wick
- Rosin-core solder
- Intellivision console
- Small file (may be needed)
⚠️ Please note: Installation should only be attempted by individuals with proper soldering experience and equipment. No warranty is expressed or implied.
Please NoteAs a small business, many electronic components and supplies are imported. Due to increasing import costs and tariffs, pricing may occasionally need to be adjusted. Your understanding and support are greatly appreciated.
Additional Retro Gaming Services Available- LED lighting upgrades for classic consoles
- NES blinking light repair
- RGB video upgrades for PC Engine / TurboGrafx / N64 / SNES Mini / NES (with NESRGB board purchase)
- Region switching services
- Sega Genesis S-Video upgrades and repairs
- And much more
🇺🇸 Assembled in the USA
Please feel free to contact me if you have any questions.
