Lutron HWI-H48 HomeWorks Dimmer Interface Board 48 Maestro Controls 12V:
$715.00
Lutron HWI-H48 HomeWorks H48 Dimmer Interface

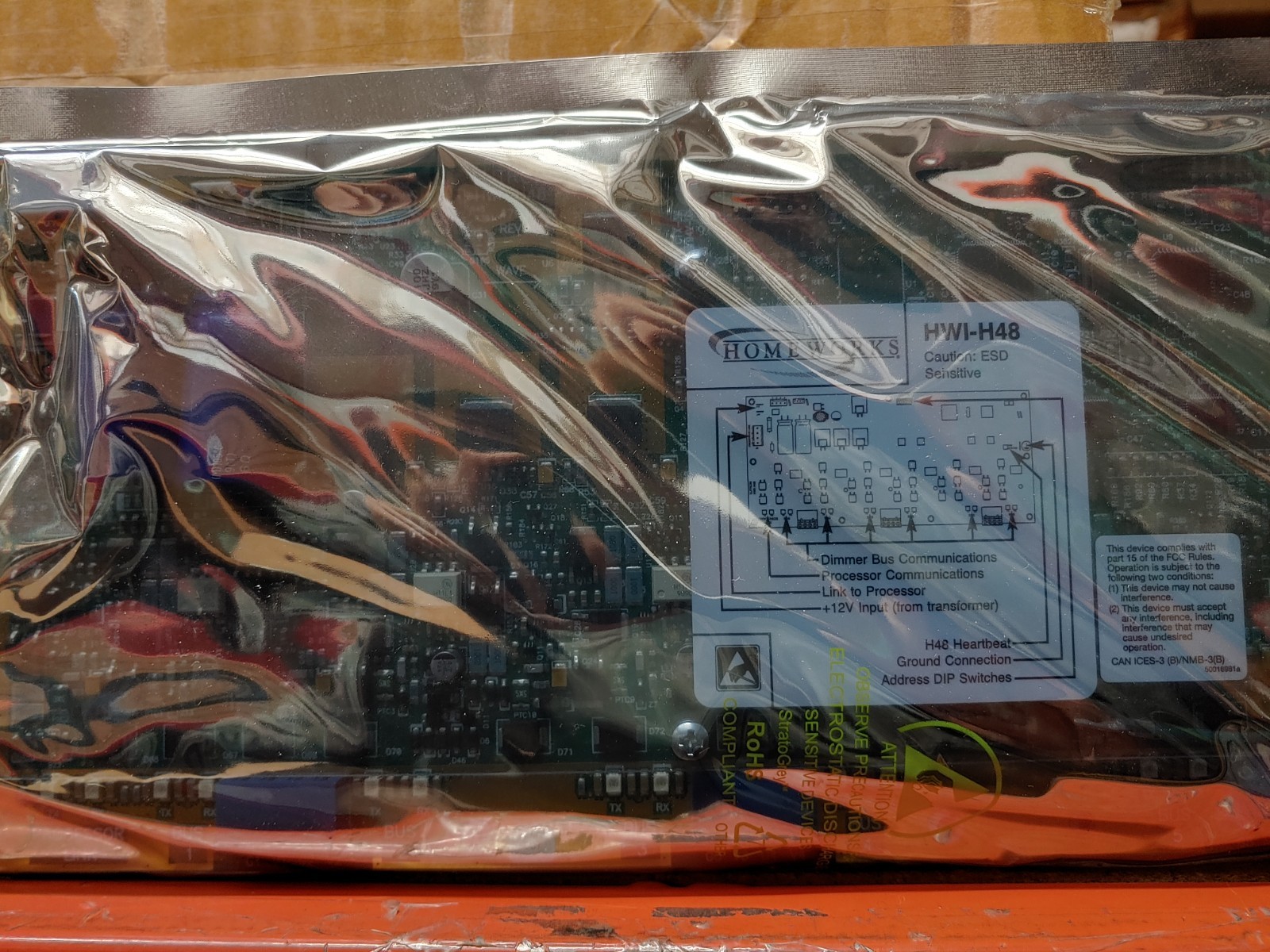

Offered for sale is one Lutron HWI-H48 HomeWorks Dimmer Interface Board.
The HWI-H48 acts as the communication interface between a compatible Lutron HomeWorks processor and wired HomeWorks Maestro local lighting controls. It supports up to 48 wired local controls across six communication buses, with a maximum of eight controls connected to each bus.
Specifications
- Brand: Lutron
- Model: HWI-H48
- MPN: HWI-H48
- Product type: HomeWorks H48 Dimmer Interface
- Control capacity: Up to 48 wired Maestro controls
- Number of communication buses: 6
- Maximum controls per bus: 8
- Input power: 12V AC
- Power source: Compatible HomeWorks power supply/enclosure
- Processor connection: 4-pin removable terminal block
- Local-control connections: Six 2-pin removable terminal blocks
- Addressing: DIP switch
- Diagnostics: Dimmer communication, processor communication and heartbeat/power LEDs
- Communication wiring: Class 2 twisted/shielded
- Maximum individual home run: 500 ft
- Maximum total wiring per Maestro bus: 1000 ft
- Operating temperature: 32°F–104°F / 0°C–40°C
- Humidity: 0–90%, non-condensing
- Installation: Indoor
- Dimensions: Approximately 11.25\" × 5.25\"
- Shipping weight: Approximately 1 lb
