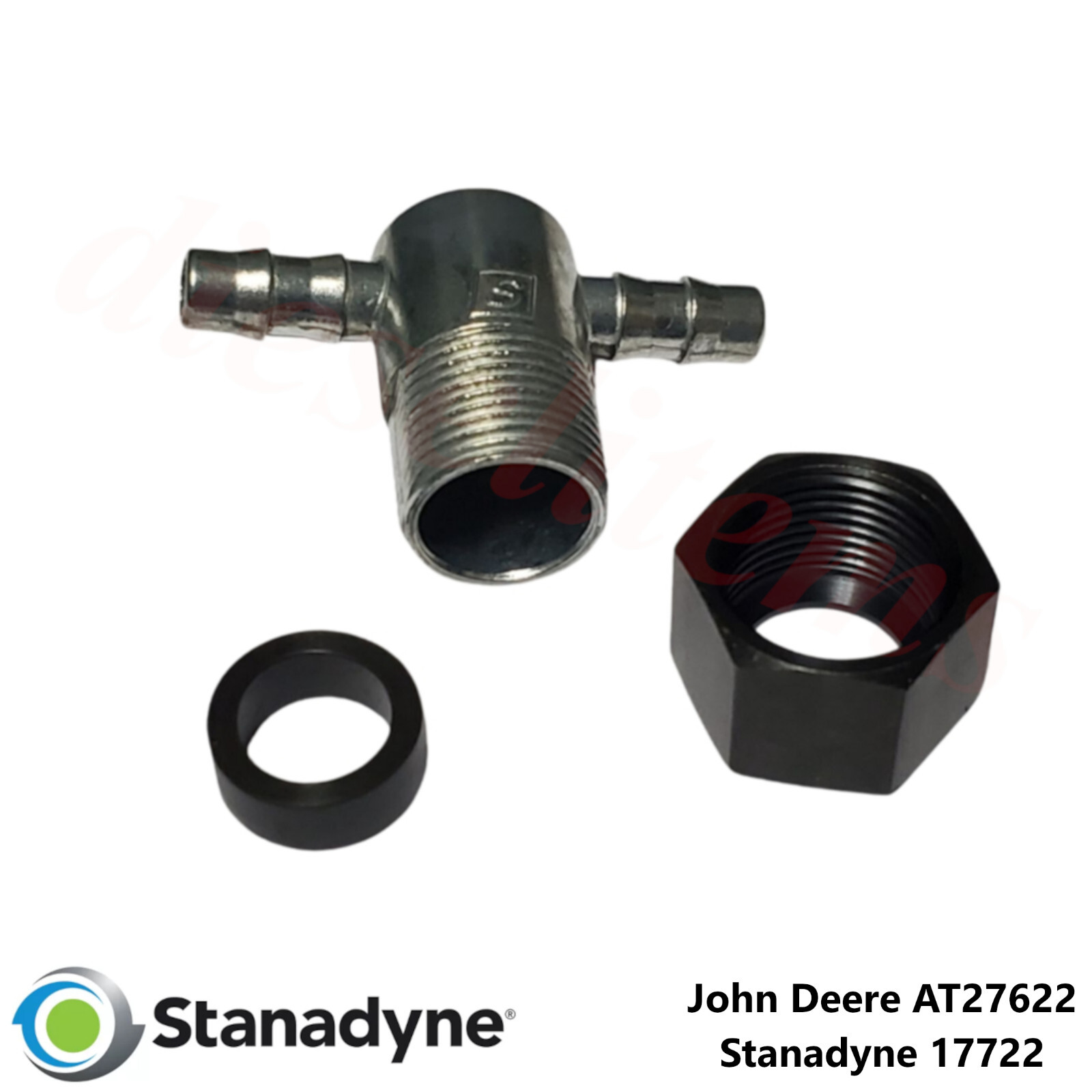

OE Fuel return tee kit to fit on the top of Stanadyne diesel pencil injectors.
This item is OEM Stanadyne brand which is the OE manufacturer for John Deere
17722 Kit includes:
1x aluminum tee 17719
1x steel nut 17720
1x grommet 17721
Fitment:*If it looks like the one you are replacing, it probably is the right part for you!
These injector return tees are on so many JD models. See list below.Installation tips:
1. First unscrew the tee and set aside.
2. “Gently” clamp nut in to a vise and force injectorthrough old grommet by pulling, twisting and WD40, do not loosen any of thenuts on top of the injector itself, this could change settings. I guess onecould pick out the old grommet with a probe but would be tedious. (Use care notto warp nut with the vice)
3. Slide on nut without the grommet and then poke in newgrommet.
4. Slide nut and grommet up and thread onto the tee, theassembly does not have to be very tight to seal.
***Do NOT trust this list completely: please verify that it looks like the part you are replacing!***This list is also certainly incomplete. If you don't see your model below, that doesn't necessarily mean this doesn't fit your equipment.John Deere Models:
Backhoe, Loader 300b 302A 310 310A 401c 410
Bulldozer 350B 450 450B 450c 550 750
Combine 3300 4400 4420 6600 920 925 930 932 952 955 965 985
Forklift 380 480 480a
Grader, Motor 570 670 670A
Harvester, Forage 5420
HI-Cycle 6000
Loader, Crawler 350 350c 450c 555 755
Loader, Four-Wheel Drive 444 544 544B
Loader, Skid-Steer 24
Loader, Two-Wheel Drive 301 301a 302 400 401B
Picker, Cotton 9900 9910
Power Unit 135 180 219 303 329
Skidder, Log 440 440c 540 540B 640
Stripper, Cotton 484Tractor 1020 1030 130OU 1030VU 1035 1035EF 1035EV1520 1530 1830 2020 2030 2035 2040 2240 24402510 2520 2630 2640 2840 3030 3120 4030 4040 820(3 Cyl.) 830(3 Cyl.)As always, if you need any help, don't hesitate to shoot us a message. We are here to help!
