Item Specifics:

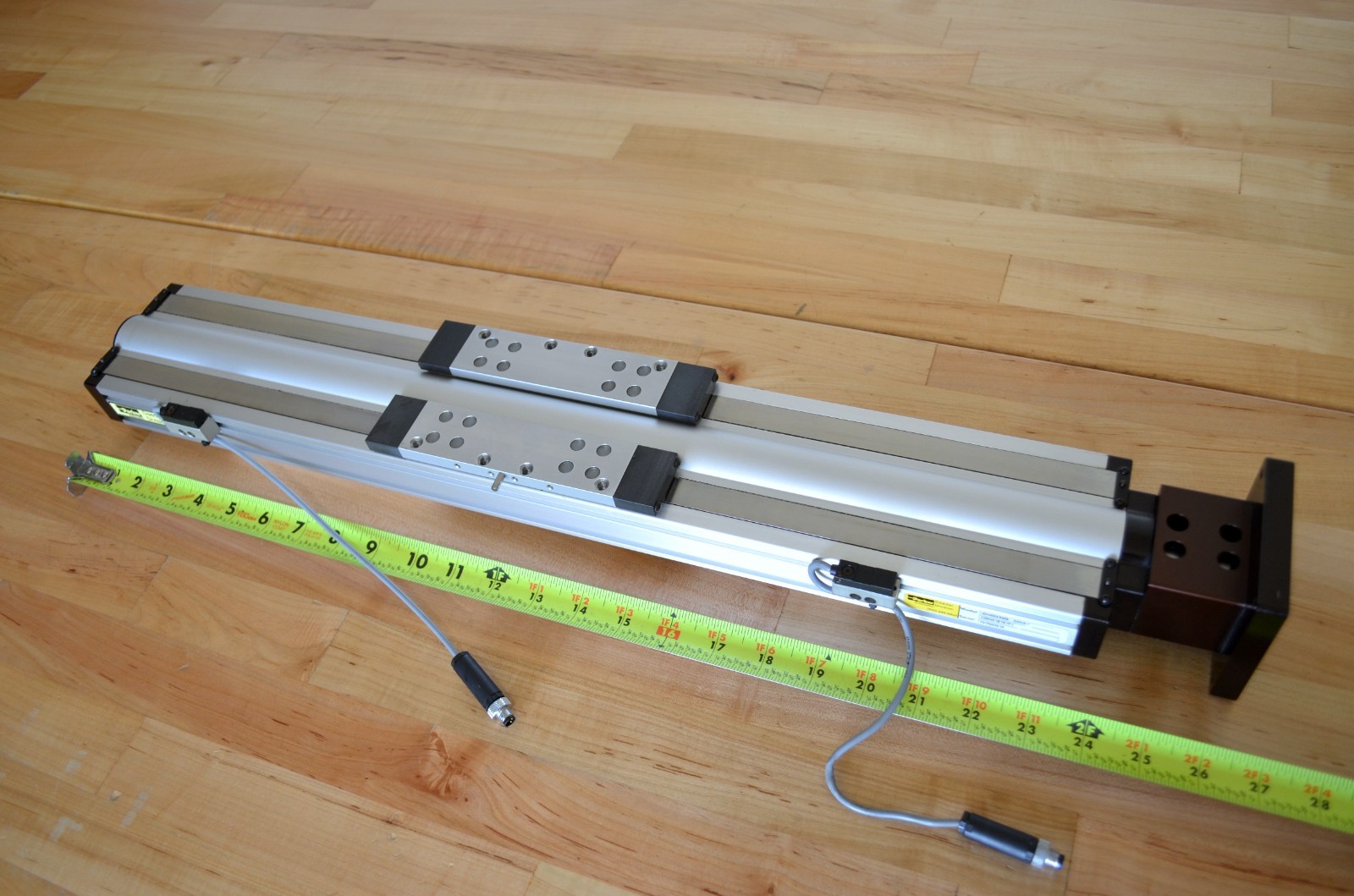

Parker 404400XRMS Linear Actuator
16mm dia Precision Ground Ballscrew(20mm pitch)
Rated Travel = 400mm (15.7\")
Max Travel = 415mm (16.3\")
Nema34 \'Inline\' Motor Mount
(2) Proximity Limit Sensors
This 404XR actuator was part of a prototype CNC machine
and the video included in this listing shows the actuator on
the CNC machine being tested before it was dismantled.
Item Description:
This is a used Parker 404XRMS actuatorin excellent condition.
I removed it from a prototype 404XR CNC machine that was never
put into production (the actuator was purchased used prior to building
the prototype CNC machine). I attached a video to this listing showing
the actuator in action when it was part of the prototype CNC machine.
I will be parting out the CNC machine and selling all of the parts individually.
It is a model 404400XRMS with a400mm rated stroke length,
but themax stroke length is actually about 415mm (16.33\").
It has a precision ground ballscrew that is 16mm dia. x 20mm pitch.
This actuator has (2) proximity sensors (Limit switches)
that are mounted to the side of the actuator.
The linear rails are model IKO LWL9B with two bearings on each rail.
It has a size Nema34 \'Inline\' motor mount and a Bellows style coupler
with a 3/8\" i.d. (will fit a nema34 motor with a 3/8\" diameter shaft).
Parker class=\"MsoNormal\" align=\"center\" style=\"font-family: Arial; font-size: 14pt; text-align: left; margin: 0in 0in 0pt; background-image: initial; background-attachment: initial; background-color: white; background-origin: initial; background-clip: initial;\">
**I also have more Parker 404XR & 406XR actuators for sale,
please see my other listings for more information**
Notes from the Manufacturer:
The 400XR standard series linear positioners offer reliable performance and unmatched versatility. Convenient mounting features enable XY table combinations to be quickly and easily constructed. The XR family offers an unrivaled array of features and options which are easily matched to fit any application, from the very basic to the highly complex.
Premier performance, modular compatibility, and quick delivery have made these tables the perfect building blocks for cost-effective multi-axis systems.
- 24/7 operation at 100% duty
- Dowel holes for repeatable mounting
- IP30 rated protective strip seals
- Travels up to 2 meters
- Optional single point lube for easy maintenance
- Full range of sizes from 90mm to 285mm wide
