Item Specifics:

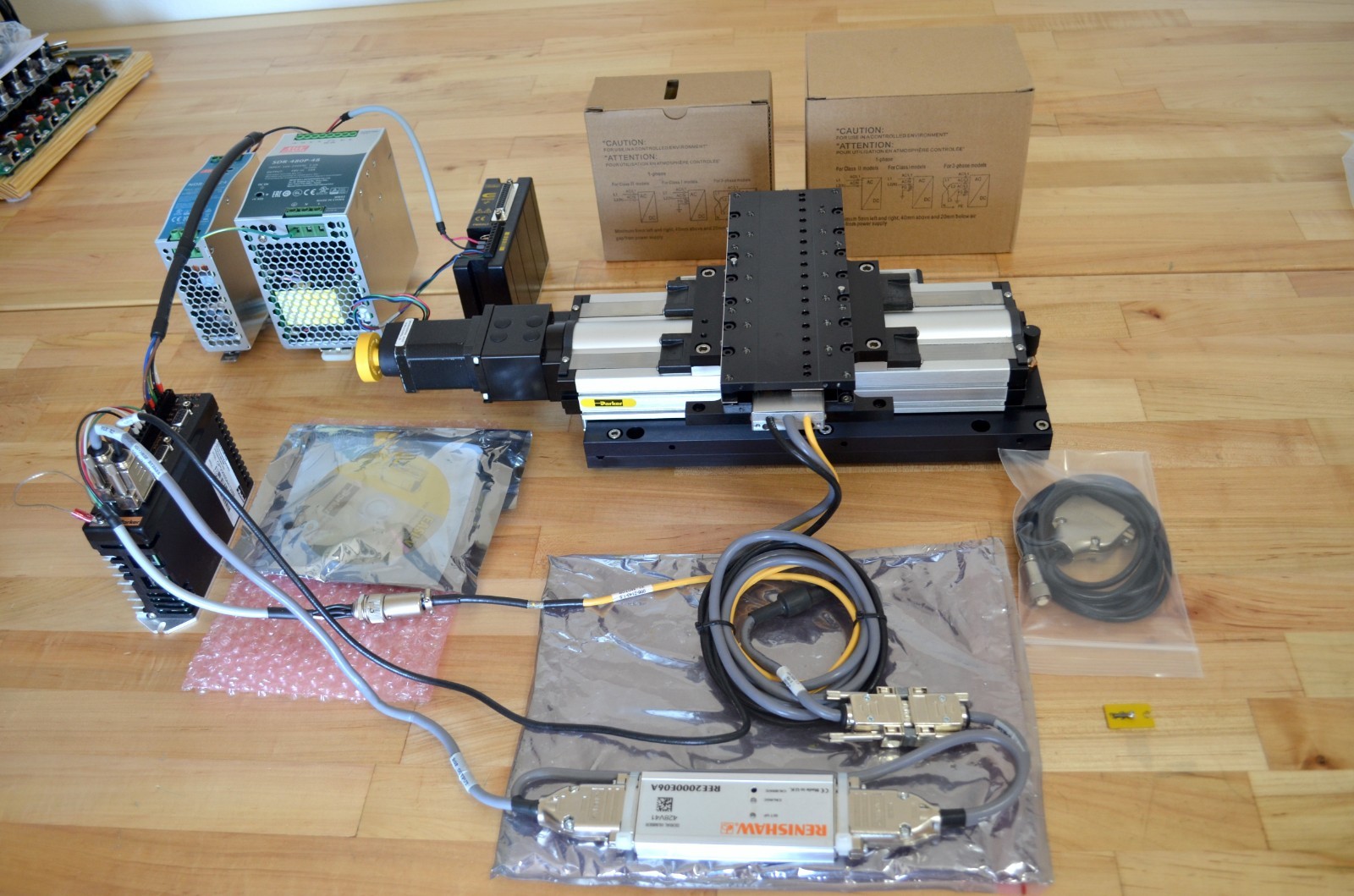

Parker 404XR / MX80L X/Y Stage Assembly:
X = Parker404100XR(100mm travel)
Y = ParkerMX80LT04-..E9(150mm travel)
Lin Engineering 4118C-01D Stepper (404XR)
w/ US Digital E2-4096-197-IE-H-D-B Encoder
Renishaw 0.01um Encoder (MX80L)
New Vix500AH Servo Drive (for MX80L)
Used Parker E-DC Stepper Drive (for 404XR)
New Mean Well NDR-120-24 Power Supply
New Mean Well SDR-480P-48 Power Supply
Also Includes Proximity Sensor Cable for 404XR
This system has been hooked together and tested using
Mach3 software and everything works perfectly (see video).
(Pictures & video are of the actual item that you will receive.)
**Please note that the sale does not include AC power cords and the buyer will need to provide AC power to both power supplies.**
Item Description:
This is a 404XR/MX80L XY stage that was kept as a \'spare unit\'and
has been used very little if at all and it is in perfect working condition.
I have also included all the drivers and power supplies necessary to
operate the stage. The drivers have been configured and everything
has been wired together and tested using Mach3 software (see video).
The X stage is a model 404100XRMP with a 100mm rated stroke
length,but themax stroke length is actually about 120mm (4-3/4\").
The ballscrew is precision ground 16mm dia. x 5mm pitch and
the rails are modelHiwin MGNR9Hwith two bearings on each rail.
The 404XR actuator has (3) proximity sensors (Limit / Homing)
that are mounted to the side of the actuators in a protective
aluminum housing with clear plastic top cover & 5-pin connector.
The 404XR comes with a Lin Engineering 4118C-01D nema17
dual-shaft stepper motor with a Vexta D4CL-5.0 clean damper.
The 4118C stepper also has a US Digital E2-4096-197-IE encoder
attached (please note that the encoder is missing the \'Gnd\' pin and
the buyer would need to repair the encoder if they plan to use it).
The Y stage is a model MX80LT04-MPD13..E9 linear servo actuator
that has the highest resolution encoder available, with a resolution
of 0.01um or 10 nanometer (0.01 microns = 0.00001mm).
The MX80L also comes with Limit & Homing sensors built-in.
The Vix500AH servo drive is brand new and is used to control
the MX80L using step/direction signals sent from a Mach3
breakout board or indexer. The MX80L has a 0.01um encoder
that requires 100,000 steps per millimeter. The max speed of
MX80L is about 30mm/second. Please note that you can also
use the MX80L without the Renishaw Interpolater to get a 5um
resolution and this will dramatically increase the speed.
The E-DC stepper drive is used to control the nema17 stepper
motor on the 404XR using step/direction signals sent from a
Mach3 breakout board or indexer. The E-DC drive is currently
configured at 10,000 steps per rotation which equals 2,000 steps
per millimeter or 0.5um. The max speed of the 404XR is about
110mm/second (no load). Please note that the E-DC drive can be
set at up to 50,000 steps per rotation which would increase the
resolution to 0.1um. **There is also an encoder attached to the
nema17 stepper but there is no encoder input on the E-DC drive
so it is not being used in this setup. The encoder is missing the
\'Gnd\' pin and the buyer would need to repair the encoder if they
plan to attach the encoder to an indexer or a breakout board. **
Also included with this sale are the Mean Well power supplies.
The NDR-120-24 is a 24v supply that provides power to the Vix500AH
logic circuit and the SDR-480p-48 is a 48v supply that powers both
the nema17 stepper motor and the MX80L linear servo motor.
The 404XR also comes with a proximity sensor cable.
The Vix500AH & E-DC drive will work with step/directionsoftware
like Mach3 or similar. In the videos I am using a SmoothStepper
breakout board (not included with this sale) and that is the
breakout board I would recommend if you are goingto use Mach3
software because you will need a high \'pulse output\' to operate
the MX80L at the speeds shown in the videos I have included.
404XR Manufacturer Notes:
The 400XR standard series linear positioners offer reliable performance and unmatched versatility. Convenient mounting features enable XY table combinations to be quickly and easily constructed. The XR family offers an unrivaled array of features and options which are easily matched to fit any application, from the very basic to the highly complex.
Premier performance, modular compatibility, and quick delivery have made these tables the perfect building blocks for cost-effective multi-axis systems.
- 24/7 operation at 100% duty
- Dowel holes for repeatable mounting
- IP30 rated protective strip seals
- Travels up to 2 meters
- Optional single point lube for easy maintenance
- Full range of sizes from 90mm to 285mm wide
MX80L Manufacturer Notes:
Parker\'s MX80L Miniature Stage, the smallest linear servo-motor driven positioner in the
industry, isredefining high throughput automation in the world of miniature positioners.
The MX80 is a high performancelinear servo motorstage designed to meet today\'s 24/7
production demands requiring rapid-firepositioning of light loads within a small work envelope.
- Miniature Size - Low Profile (25 mm high X 80 mm wide)
- Linear Servo-motor drive
- 5G acceleration
- High velocity (2 m/sec.)
- Quick Settling
- Submicron precision
- Multi-axis platform
- Selectable travels:25,50,100,150 mm.
- Cross Roller Bearing (zero cage creep design)
- \"Plug-in\" intelligent drive
- No Moving Cables
- Dowel holes for repeatable mounting of payload
- Cleanroom and Low ESD options
Vix500AH Manufacturer Notes:
The freely-programmable, intelligent ViX servo drive delivers high levels of functionality and flexibility in programmable motion control. With outputs in the 250-500 VA power range, ViX uses field-oriented digital control technology, to give enhanced dynamic performance with improved efficiency. Housed within an extremely compact case, ViX is suitable either for direct panel mounting or for attachment to a standard DIN rail.
The ViX series servo drive is produced in two versions having continuous current ratings of 2.5 A and 5 A at motor bus voltages up to 80VDC. A peak current capability of three times the continuous rating provides an outstanding acceleration performance. The device offers the choice of either resolver or encoder response (user selectable). To assist with initial commissioning, the drive can correct most motor and response wiring errors automatically.
ViX500 Servo Drive/Controller Features:
• Power Output Rating : 500 VA
• Drive Input Supply : 48...80VDC
• Output Current : continuous 5.0 Arms / peak 15 Arms for 2 seconds
• Analog Control or Built-in Controller (using Parker\'s proven EASI code)
• Powerful EASI-V Front-End Software
• Programmable Resolution
• Encoder and Resolver response Supported
• High-Resolution Sine-Cosine response Option (for use with Parker MX Linear Motor Positioners)
• Optional CANopen/RS485 Interface
• Field-oriented control for improved dynamic performance
• Panel or DIN rail mounting
• Compatible with Parker servo motors
A powerful front-end software package is supplied with the drive and permits straightforward, rapid configuration and tuning. When used with Parker servo motors, only the motor type number is required for full configuration. ViX intelligent drives incorporate a powerful controller using Parker\'s wellproven EASI command language. As well as carrying out all basic motion control functions, the controller performs more advanced operations such as external encoder following and registration moves. All necessary configuration is performed by software. In addition to an RS232C interface which is included in the standard drive, an optional factory-installed fieldbus module allows for both CANopen and RS485 communication. The base version of the drive can be controlled by step-direction signals in addition to an analog velocity or torque demand. ViX forms part of a new, fully-integrated system of motion control components which includes digital servo and stepper drives, power supplies, operator panels and extension I/Os. These components complement Parker\'s range of mechanical positioning systems which includes precision tables, electric cylinders and linear actuators.
E-DC Manufacturer Notes:
- Designed for use with motor inductance range of 0.2 mH–80 mH
- Three-state current control allows the drive and motor to run cooler and more efficiently than two-state drives
- Selectable resolution up to 50,800 steps/rev
- Auto standby reduces motor current (and heating) at rest
- Provides 0.2 Amps to 4.8 Amps (peak)
- Single 24-48 VDC power supply input
- Compatible with a variety of motors
- Six predefined current waveforms to optimize smoothness
Manufacturer Website class=\"MsoNormal\" align=\"center\" style=\"font-family: Arial; font-size: 18.6667px; text-align: left; color: rgb(0, 0, 0); font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-indent: 0px; text-transform: none; white-space: normal; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial; margin: 0in 0in 0pt; background-image: initial; background-attachment: initial; background-color: white; background-origin: initial; background-clip: initial;\">
Shipping Details:Shipping rate applies to lower 48 States only.International orders will be shipped via \'s \'Global Shipping Program\', please click on the \'Shipping and Payments\' tab above and select your country from the drop-down menu to get a shipping quote from . If your country is not listed then please contact me for a shipping quote before placing a offer.
