Item Specifics:

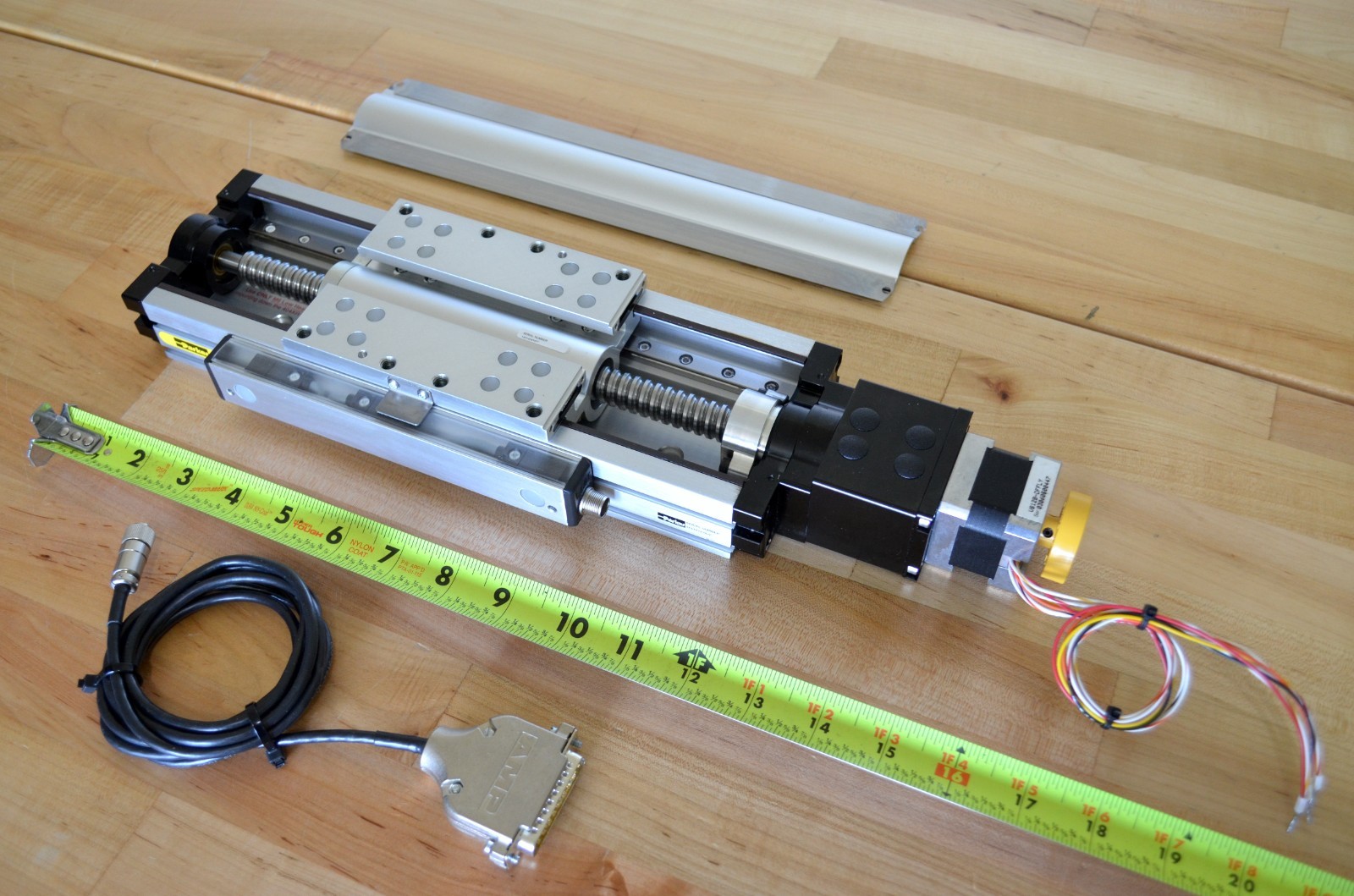

Parker 404100XRMP Linear Actuator
16mm dia. Precision Ground Ballscrew
Proximity Sensors Limit / Homing
Includes Cable for Limit Sensors
Parker VS12B-DFFLY
Nema17 Stepper Motor 3.0A
Vexta D4CL-5.0 Clean Damper
This 404XR actuator has been tested with Mach3
softwareusing a Parker E-ACstepper drive (see video).
(Pictures and video are of the actual item that you will receive.)
**Please note that the sale does not include stepper drive or Mach3 breakout board**
Item Description:
This is a Parker 404XR actuator that was kept as a \'spare unit\'and
has been used very little if at all and it is in perfect working condition.
It is a model 404100XRMP with a 100mm rated stroke length,
but the max stroke length is actually about 120mm (4-3/4\").
The ballscrew is precision ground 16mm dia. x 5mm pitch.
This actuator has (3) proximity sensors (Limit / Homing switches)
that are mounted to the side of the actuator in a protective
aluminum housing with a clear plastic top cover & 5-pin connector.
The 404XRMP actuators are extremely accurate (\'P\' = Precision
model), they have a repeatability of 1.3um (1.3 microns = 0.00005\").
It has a nema17 motor mount and comes with a Parker VS12B-DFFLY
dual-shaft stepper motor with 57oz-in of torque. There is a Vexta
D4CL-5.0 Clean Damper mounted to the rear shaft of the stepper motor.
This actuator was tested using a Parker E-AC stepper drive at a resolution
of 5000 steps per rotation which equals 1000 steps per millimeter (1.0um) and
I was able to achieve a speed of 175mm per second with no load (see video).
Parker class=\"MsoNormal\" align=\"center\" style=\"font-family: Arial; font-size: xx-large; text-align: left; margin: 0in 0in 0pt; background-image: initial; background-attachment: initial; background-color: white; background-origin: initial; background-clip: initial;\">Parker motor Model#VS12B-DFFLY
**I also have more Parker 404XR actuators for sale,
please see my other listings for more information**
Notes from the Manufacturer:
The 400XR standard series linear positioners offer reliable performance and unmatched versatility. Convenient mounting features enable XY table combinations to be quickly and easily constructed. The XR family offers an unrivaled array of features and options which are easily matched to fit any application, from the very basic to the highly complex.
Premier performance, modular compatibility, and quick delivery have made these tables the perfect building blocks for cost-effective multi-axis systems.
- 24/7 operation at 100% duty
- Dowel holes for repeatable mounting
- IP30 rated protective strip seals
- Travels up to 2 meters
- Optional single point lube for easy maintenance
- Full range of sizes from 90mm to 285mm wide
Manufacturer Website Link:
