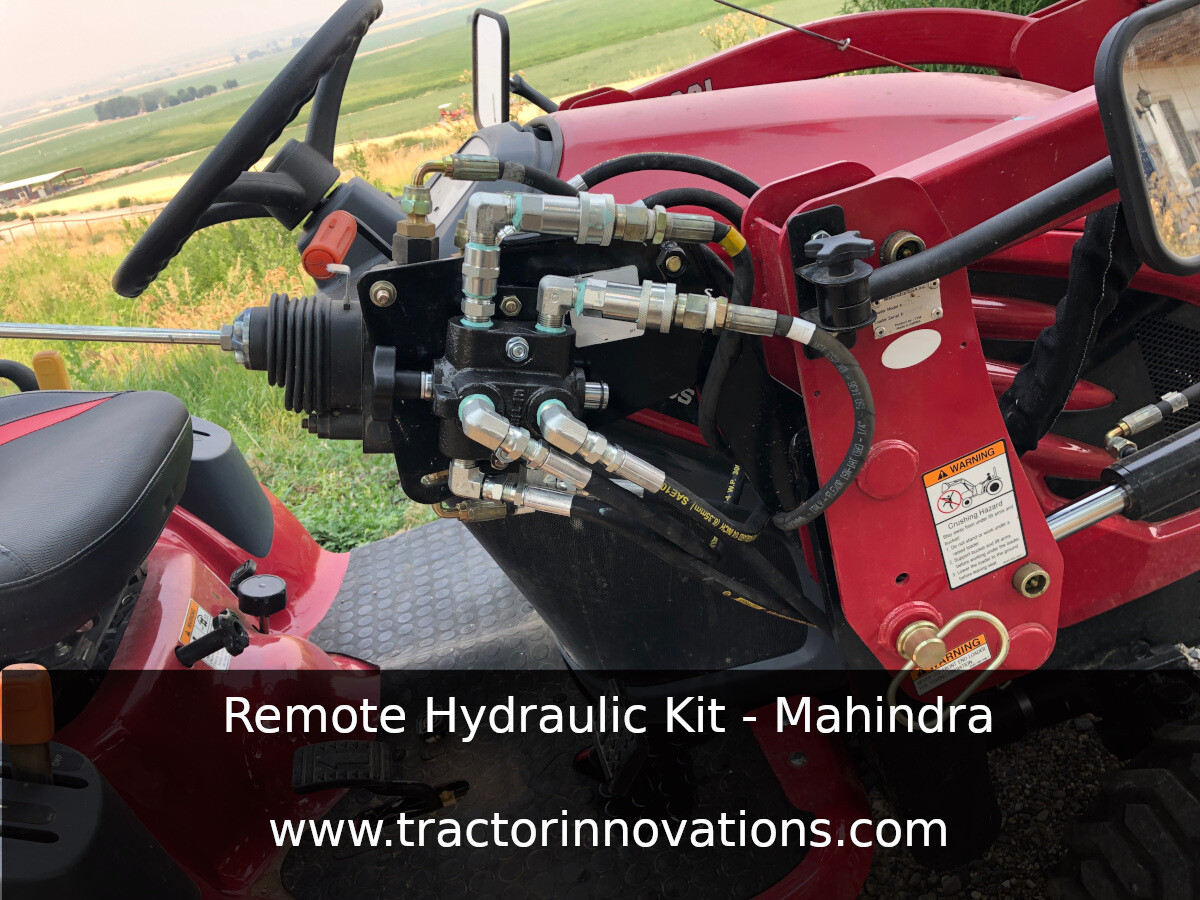

You are looking at the simplest andmost affordable way to add remote hydraulics to your Mahindra tractor. This kit can be used to power and control:
- Hydraulic Top Link
- Any 3-point implement with hydraulic cylinders or motors
- Grapple
- And Much More!
This easy-to-install system utilizes your existing loader valve to control your remote cylinders. Simply use the switching valve to trade one of your loader functions for control of the remote cylinder.
- No modification of yourhydraulic system is required
- It doesn’t touch your electrical system
- A bracket is included for no-drill installation on many tractors.
With a simple push/pull of thevalve, you select which operation you’d like to control.Thevalve automatically holds the load on the inactive circuit, and you control theactive cylinder(s).The valve can be moved under load with just apull of your fingers, and the inactive cylinder is locked in place.Noneed to understand hydraulics or worry about compatibility of open/closedcenter systems, this system just plugs in, and can often be installed or removed inunder 30 minutes.
This system works well with loaderinstalled or off (tractors newer than 2003), and retains the quick-install functionality for yourloader.All quick-connect connections are maintained, so you’llnever know this is installed, until you want to use it.
The factory rear remote kit can cost$1500+, other kits use complicated electronic solenoid valves, and some peoplehave hacked in to their hydraulic system to braze in connections –yikes!This kit is incredibly simple, and foolproof toinstall in 15 minutes.This is what I use on my personaltractor, and have installed on over 25 tractors now, with great results.I include photo instructions, and all the parts so that you can confidentlyinstall on your Kubota!
ThisPlug&Play Kitisfully assembled, and includes the valve, hoses, mountings, and 1/2" ISO Ag quick-couplers -attaches to your hydraulic system without even turning a wrench. You'll just disconnect two quick-connect fittings to your loader, and pop this system in between those connections. In minutes!!
Included in the kit:
- Switching Valve (Made in the USA)
- Hoses (Made in the USA)
- Fittings
- Mounting Bracket (depending on model)
- Quick-Connect Ag-type fittings (Pioneer 4000 series - push-connect)
- Breakaway Quick-Connect Mounting
Video showing complete install and demonstration of the kit on a Mahindra 1626:
$625 Remote Hydraulic Kit for Mahindra 1626. No drilling - 15 minute install
Video will open in a new window
Using the App? Paste link into a browser window:
[isdntekvideo]
Video showing complete install and demonstration of the kit on a Mahindra Max26XL and similar tractors, such as the 4540, 4025, and Max28XL:
$625 Remote Hydraulics Kit for Mahindra 4540, 4025, Max26XL and similar tractors
