RokSolid 10 Ton Hydraulic C-Clamp 4 Inch Jaw Heavy Duty W/ Cylinder 10,000 PSI For Sale

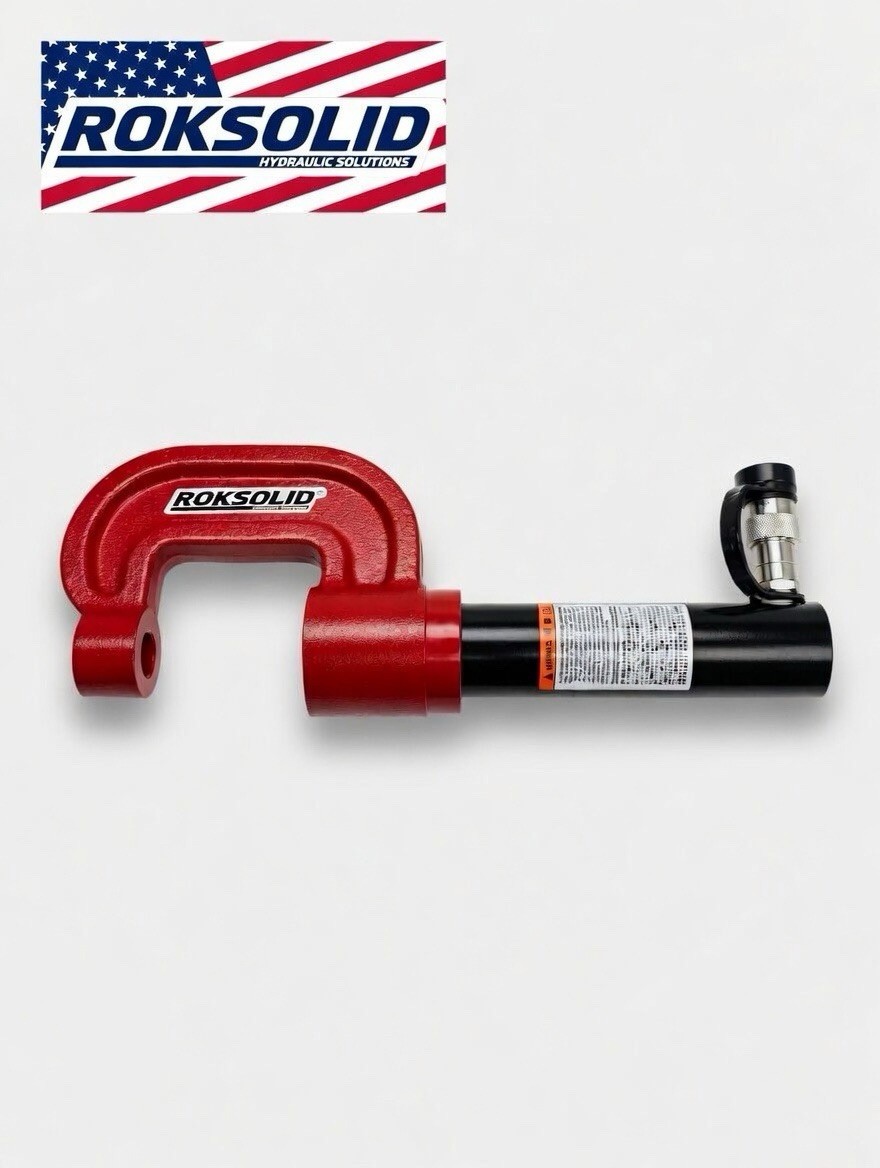

RokSolid 10 Ton Hydraulic C-Clamp – 4 Inch Jaw Opening

Includes matching male CH604 coupler (not shown.)

– Complete with 6” Stroke 10 ton capacity hydraulic Cylinder – 10,000 PSI

This listing is for a heavy-duty 10-ton hydraulic C-clamp (also known as a G-clamp press) precision-built from detailed engineering drawings for industrial, fabrication, maintenance, and pressing applications. This robust unit features a heavy-gauge steel frame paired with a powerful 6-inch stroke hydraulic cylinder rated for 10,000 PSI.

Actual Jaw Opening: 4 inches

The frame geometry delivers a practical 4-inch clear jaw opening between the fixed anvil face and the hydraulic cylinder centerline — ideal for a wide range of heavy-duty tasks.

Key Frame Dimension: One of the main horizontal segments in the C-frame measures 3.819” (converted from original 97 mm), forming a critical part of the inner throat geometry that provides strength and reach.

Perfect for:

• Wheel stud removal on heavy trucks, trailers, and Class 8 equipment

• Pressing, bending, straightening, spreading operations, welding, holding.

• Shaft, bearing, or pulley installation/removal

• General heavy-duty clamping and forcing in the shop or field

Key Specifications:

• Capacity: 10 Ton (20,000 lbs) clamping/pressing force

• Jaw Opening (Throat Depth): 4.0 inches (practical working opening derived from frame geometry)

• Key Frame Segment: 3.819” (major horizontal section of the C-frame)

• Hydraulic Cylinder: 6” stroke, single-acting, 10-ton rated

• Maximum Working Pressure: 10,000 PSI

• Frame Dimensions (from detailed engineering drawing, all in inches):

• Overall width: 9.567”

• Tall end height: 5.610”

• Large inner radii: R 2.953” and R 2.756” for deep, strong reach

• Eye/loop mounting point: 1.260” height with 0.551” slot

• Threaded Spindle Area: 2¼-14 UN (ready for secure cylinder mounting)

• Construction: Heavy-gauge reinforced steel frame with precision radii and chamfers for maximum strength and minimal deflection under load

• Operational: Works in any orientation — vertical, horizontal, or inverted

This C-clamp frame was built from professional engineering drawings with all dimensions converted to standard inches. It pairs perfectly with standard 10-ton hydraulic cylinders (Enerpac RC-106 style or equivalent). The included 6” stroke cylinder gives you excellent reach and versatility.

Condition: Brand new (never used). Ready to put to work immediately with your existing 10,000 PSI hydraulic pump and hose setup. Don’t have one? We can also supply you with that. Just message us.

Why Buy This?

• True 4-inch jaw opening backed by a strong 3.819” frame segment and heavy-duty construction that handles full 10-ton loads without flexing

• Deep C-frame design offers great access while staying compact

• Versatile for trucking, welding, fabrication, maintenance, and heavy equipment repair

• Excellent value compared to name-brand Enerpac or Power Team C-clamp presses
