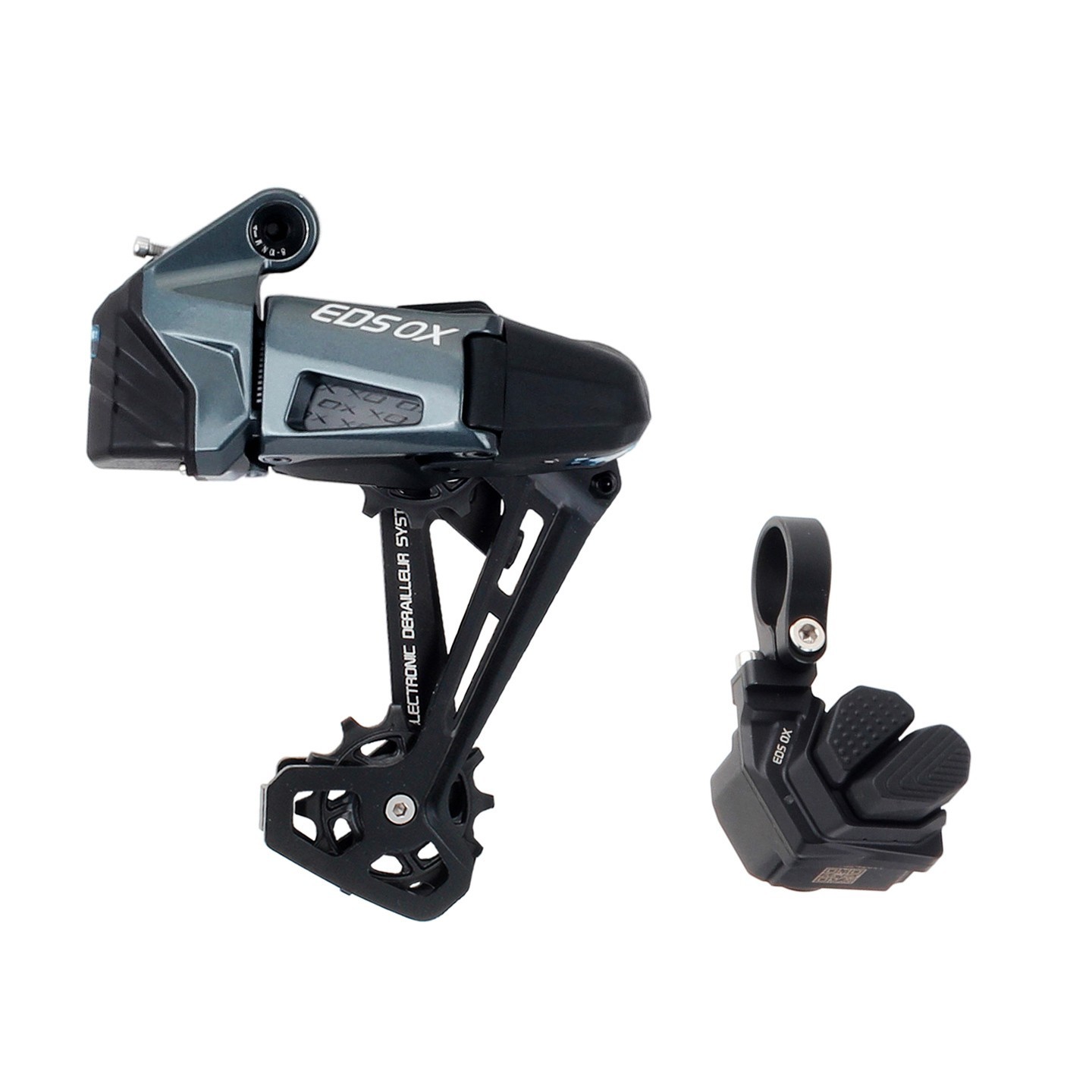

Wireless Electronic MTB Groupset WHEELTOP EDS OX 2.0

In the Box

The Complete Shift Kit

01OX 2.0 Wireless Electronic Rear Derailleur 02Wireless Button-Style Shifter 03Magnetic Charging Cable + Type-C Adapter What\'s Inside the Kit Rear Derailleur & Shifter - Built for the Trail

New OX2.0 Electronic Rear Derailleur

Adjustable Chain Stabilizer

Button-Style Shifter

Clean, minimal design with a satisfying mechanical-keyboard-style click. Shift up or down instantly - the derailleur responds with zero perceptible delay. IP67-rated dust and water resistance means it handles rain rides and post-ride washdowns without a second thought.

Feel

Mechanical Click

Response

Zero Lag

Weather

IP67 Sealed

Battery

CR2032

CR2032 Battery — Replaced in Seconds, No Tools Required.

The New Battery Is the Only Tool You Need.

Smart Control Full Control from Your Phone

Download the WHEELTOP app to pair, tune, and monitor your drivetrain - all from your handlebars.

1

Open the WHEELTOP app and tap + Start Using. It searches for nearby EDS OX2.0 components over Bluetooth, showing a Searching for devices screen. Once your derailleur turns up, select EDS OX2.0 and tap Finish — the app connects automatically, showing an Accessing data… prompt while it pairs — just keep the derailleur powered on and within range. When it\'s done, the home screen lists both components — the rear derailleur and the shifter — each showing its live battery reading, with the derailleur card also listing firmware version and MAC address.

2

Open the RD tab to view current gear position, then tap Flywheel settings and select your cassette\'s brand and speed count so the derailleur knows exactly how many gears to index across.

Not Locked to One Speed Count

3

Shift the rear derailleur onto the smallest freewheel position, tap Next step, then use the on-screen controls to fine-align the guide pulley under the smallest sprocket.

Guided On-Screen Alignment

4

If you notice any unevenness in the upshift or downshift, dial in the fine-tuning distance on the RD tab. Then switch to the SW tab to assign what each button on the shifter does — no two riders shift the same way.

Set It Once, Ride Your Way

Beyond Setup

Switch to the ride screen for distance tracking and a full history of past rides — each entry logged with duration, average speed, and calories burned.

Live Stats While You Ride

Riding Modes

Switch between Standard and Racing mode directly in the app. Each mode is tuned for a different riding style — no tools, no hassle.

Standard Mode

Racing Mode

Wireless 3-14 Speed IP67 Waterproof Built-in Battery Bluetooth + ANT+ App Control Standard & Race Mode Magnetic Charging OTA Firmware Update 3-14 Speed compatibility IP67 Dust-tight · 1m submersion 24,000 Shifts per full charge 800mAh Built-in lithium battery Technical Details Specifications

Full technical breakdown of the OX 2.0 wireless electronic shifter and rear derailleur kit.

Brand WHEELTOP Model EDS OX 2.0 Wireless Electronic Shifter / Derailleur Kit Application Mountain Bikes, Flat-Bar Road Bikes, Folding Bikes Speed Range 3-14 Speed (configurable in app) Cassette Compatibility Long Cage 10-52T · Medium Cage 10-42T · Short Cage 10-32T Pulley 12T positive and negative teeth Material Aluminum Alloy Wireless Protocol BLE + ANT+ pairs with cycling computers, displays gear and battery Charging Port Pogo-Pin Magnetic Connector Derailleur Battery 800mAh built-in lithium · 7.4V · 5.92Wh Shifter Battery CR2032 coin cell Charge Indicator Red: charging · Light off: fully charged Protection Rating IP67 - dust-tight, 1m submersion up to 30 min Weight Rear Derailleur 397.5g · Shifter 70g Cage Version 58mm · 75mm · 93mm (select correct version for your cassette) Modular Design Replaceable Derailleur Cage

The cage plate is secured by hex socket screws — swap it in minutes with a 3 mm hex key. Use a professional-grade precision hex key (RC / model aircraft type recommended) — a cheap or worn key will strip the small screws instantly. Change cage length, replace a damaged cage after a crash, or upgrade when new cage options become available.

Trail Crashworthy

Flexible Configuration

Choosing Your Version Which Cage Length is Right for You?

The OX 2.0 comes in three cage lengths, each engineered for a specific cassette range and riding style. Choosing the wrong cage will compromise shift quality and chain tension — confirm your largest sprocket before ordering.

93mm Long Cage

10 – 52T

Cassette Compatibility

75mm Medium Cage

10 – 42T

Cassette Compatibility

58mm Short Cage

10 – 32T

Cassette Compatibility

Package Contents What\'s in the Box

×1

×1

×1

×1

×1

×1

Step 1 Before Installing Check Your Derailleur Hanger

Please complete these two checks before fitting the WHEELTOP rear derailleur. Only install it once both are confirmed.

CHECK 1

Is the Hanger Straight?

A bent hanger tilts the rear derailleur, which causes poor shifting, chain noise and difficult calibration, no matter how carefully it is set up.

How to check: look from behind the bike. The hanger should hang straight down, parallel to the cassette cogs. If it is bent, straighten it with a hanger alignment tool or fit a new hanger.

CHECK 2

Does the Hanger Have a Step?

COMPATIBLE

Clear step at the bottom

NOT COMPATIBLE

Very small step

The small tab next to the mounting bolt must rest on the step at the bottom of the hanger, so the derailleur can swing forward and back.

Small step? Fit a hanger with a larger step, or a derailleur hanger extender. Otherwise the derailleur stays rigid and cannot be set up.

Before You Order Compatibility & Buyer Notes

Please review the following before purchasing to ensure correct fitment.

UDH Frames: Mounts on the Existing Hanger, No Extra Parts

1x Drivetrain Only

Choose the Right Cage Length

App-Based Setup Required
