WHEELTOP EDS TX Wireless Groupset 2x7-12 Speed Rim Brake Carbon Oversized Pulley For Sale

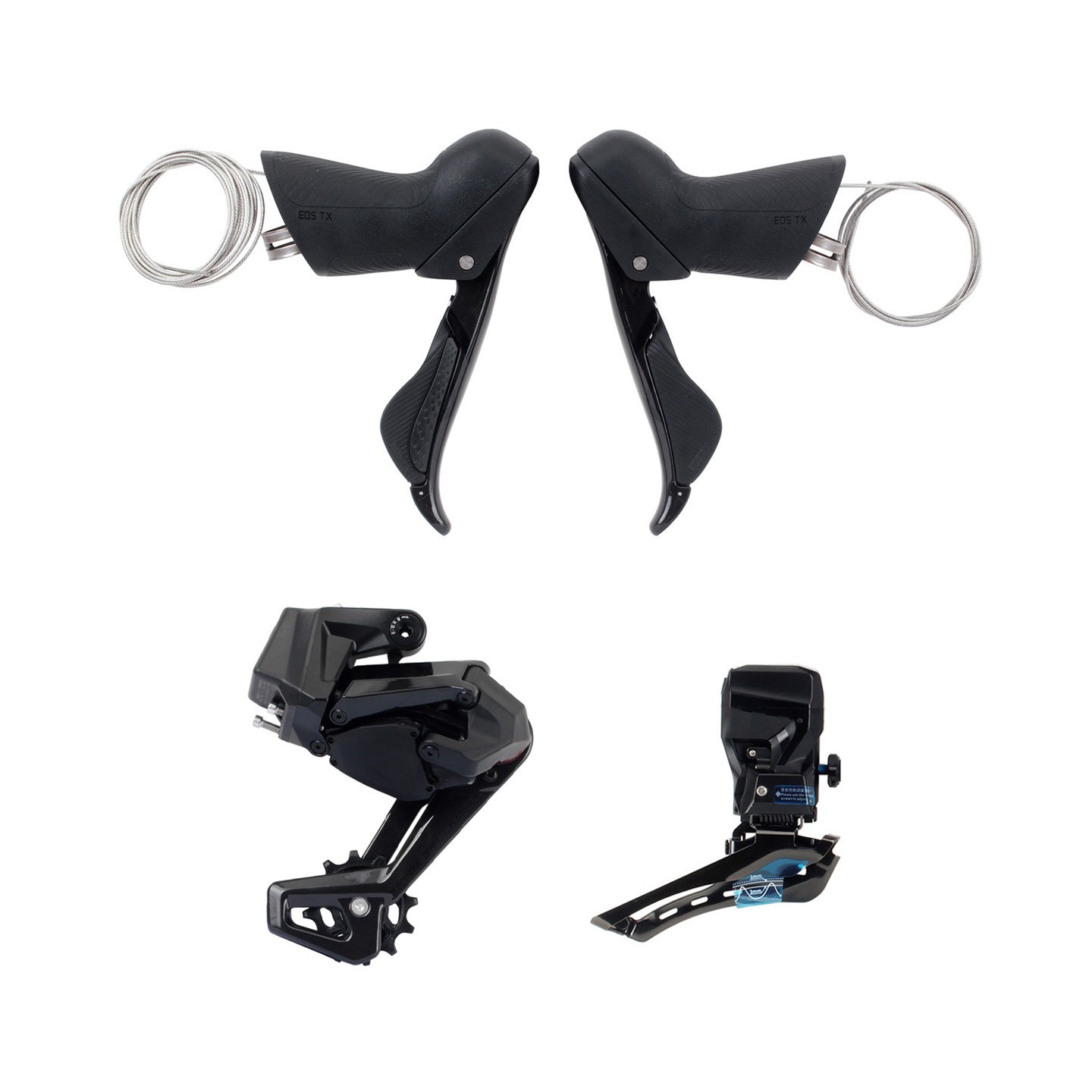

Wireless Electronic Shifter / Derailleur Kit WHEELTOP EDS TX

What\'s Inside the Kit Electronic Rear Derailleur — 7-12 Speed, App-Configurable

EDS TX Electronic Rear Derailleur

7-12 Speed, Set in the App

Performance Upgrade Ceramic Oversized Pulley Cage Upgrade — Lower Friction, Higher Efficiency

The EDS TX Ceramic Oversized Pulley Cage variant upgrades the rear derailleur with ceramic bearing oversized pulley wheels — available on the Rim Brake build on this listing.

Ceramic Bearing Oversized Pulley Cage

Same Platform. Ceramic Bearing Upgraded Pulleys.

Why Oversized? The Chain Wrap Angle Difference.

Pulley Size

Bearing Type

Chain Arc

Drivetrain Feel

Front Drivetrain — Included with Every Build Electronic Front Derailleur — Complete 2× Groupset

Every build ships with both the front derailleur and rear derailleur — a complete 2× drivetrain groupset, ready to install.

Precise Front Shifting on Demand

FD Battery

600mAh / 8.4V

Charging

Pogopin Magnetic

Wireless

BLE / ANT+

Weight

191.3g

Rim Brake Configuration Rim Brake — Carbon Fiber Lever

The EDS TX Rim Brake build pairs a carbon fiber lever body with your existing rim brake calipers — electronic shifting precision, zero cable clutter, zero changes to your braking setup.

Chainring setup2X (double chainring) Front derailleur191.3g (included) Rear derailleur336.6g Left lever202.3g Right lever214.6g

Chainring setup2X (double chainring) Pulley bearingCeramic Left lever202.3g Right lever214.6g Base platformSame 800mAh TX RD

Carbon Fiber Body. Rim Brake Compatible.

Lightest EDS TX Configuration

Left Lever

202.3g

Right Lever

214.6g

Rear Derailleur

336.6g

Front Derailleur

191.3g

Smart Control Full Control from Your Phone

Download the WHEELTOP app to pair, tune, and monitor your drivetrain - all from your handlebars.

1

Open the WHEELTOP app and tap + Start Using. It searches for nearby EDS TX components over Bluetooth, showing a Searching for devices screen. Once your derailleur turns up, select it and name it yourself, then tap Finish — the app connects automatically, showing an Accessing data… prompt while it pairs — just keep the derailleur powered on and within range. When it\'s done, the screen switches to Connected, and the home screen lists all four components — rear derailleur, front derailleur, and both shift levers — each showing its live battery reading, with the rear and front derailleur cards also listing firmware version and MAC address.

2

Tap the settings icon in the bottom corner, then open Flywheel Settings and select your cassette\'s brand and speed so the derailleur knows exactly how many gears to index across.

Not Locked to One Speed Count

3

Shift the rear derailleur onto the smallest cog and the front derailleur onto the largest chainring, then start calibration in the app.

Guided On-Screen Alignment

4

If you notice any chain rub when shifting between chainrings, dial in each gear individually on the Fine-Tuning screen.

Need to Go Further?

Beyond Setup

Customize Your Shift Buttons

Assign what each button on the left and right shift levers does — no two riders shift the same way.

Set It Once, Ride Your Way

Switch to the ride screen for distance tracking and a full history of past rides — each entry logged with duration, average speed, and calories burned.

Live Stats While You Ride

When a new firmware version is available, the app flags it right on the home screen for the affected component.

Stay Current, Wirelessly

Riding Modes

Switch between Standard and Racing mode directly in the app. Each mode is tuned for a different riding style — no tools, no hassle.

Standard Mode

Racing Mode

Wireless Electronic Up to 36T Cassette Rim Brake Carbon Fiber Lever App-Customizable BLE + ANT+ Pogopin Magnetic Charging 800mAh Rear / 600mAh Front CR2032 Shifters Ceramic Oversized Pulley Cage Upgrade 1-Year Official Warranty 36T Max cassette size 20,000+ Shifts per RD charge BLE+ANT+ Dual-protocol wireless Technical Details Specifications

Full technical breakdown of the EDS TX wireless electronic shifter/derailleur kit.

Brand WHEELTOP Model EDS TX Wireless Electronic Shifter / Derailleur Kit Suitable For Road bikes, gravel bikes, cyclocross bikes — drop-bar bicycles with front derailleur mount Speed Range 7-12 Speed (customizable via WHEELTOP app) Cassette Compatibility Up to 36T max Rear Derailleur Pulley Standard: 12-tooth positive/negative tooth profile · Ceramic Oversized Pulley Cage option: ceramic bearing oversized pulley wheels (Rim Brake build only) Available Builds Rim Brake (Standard Carbon Cage) · Rim Brake — Ceramic Oversized Pulley Cage (optional upgrade) Wireless Protocol BLE / ANT+ — pairs with cycling computers, displays current gear position and battery level Charging Port Pogopin magnetic connector · Red light = charging, green light = charge complete Battery Capacity Rear derailleur 800mAh · Front derailleur 600mAh · System voltage 8.4V Shifter Battery CR2032 button cell (tool-free replacement) Lever Material Carbon Fiber Weight — Rim Brake Carbon Front derailleur 191.3g · Rear derailleur 336.6g · Left lever 202.3g · Right lever 214.6g Oversized Pulley Cage Ceramic Oversized Pulley Cage — available as upgrade on this Rim Brake listing Warranty WHEELTOP Official 1-Year Quality Warranty Package Contents What\'s in the Box

Both builds include the same core kit. Ceramic Oversized Pulley Cage build includes ceramic bearing oversized pulley wheels instead of the standard 12T pulleys.

×1

×1

×2

Included

×1

×2

×1

Step 1 Before Installing Check Your Derailleur Hanger

Please complete these two checks before fitting the WHEELTOP rear derailleur. Only install it once both are confirmed.

CHECK 1

Is the Hanger Straight?

A bent hanger tilts the rear derailleur, which causes poor shifting, chain noise and difficult calibration, no matter how carefully it is set up.

How to check: look from behind the bike. The hanger should hang straight down, parallel to the cassette cogs. If it is bent, straighten it with a hanger alignment tool or fit a new hanger.

CHECK 2

Does the Hanger Have a Step?

COMPATIBLE

Clear step at the bottom

NOT COMPATIBLE

Very small step

The small tab next to the mounting bolt must rest on the step at the bottom of the hanger, so the derailleur can swing forward and back.

Small step? Fit a hanger with a larger step, or a derailleur hanger extender. Otherwise the derailleur stays rigid and cannot be set up.

Before You Order Compatibility & Buyer Notes

Please review the following before purchasing to ensure correct fitment.

This Listing is for Rim Brake Only

Speed Count Fully Configurable in the App

App Pairing Required Before First Ride
