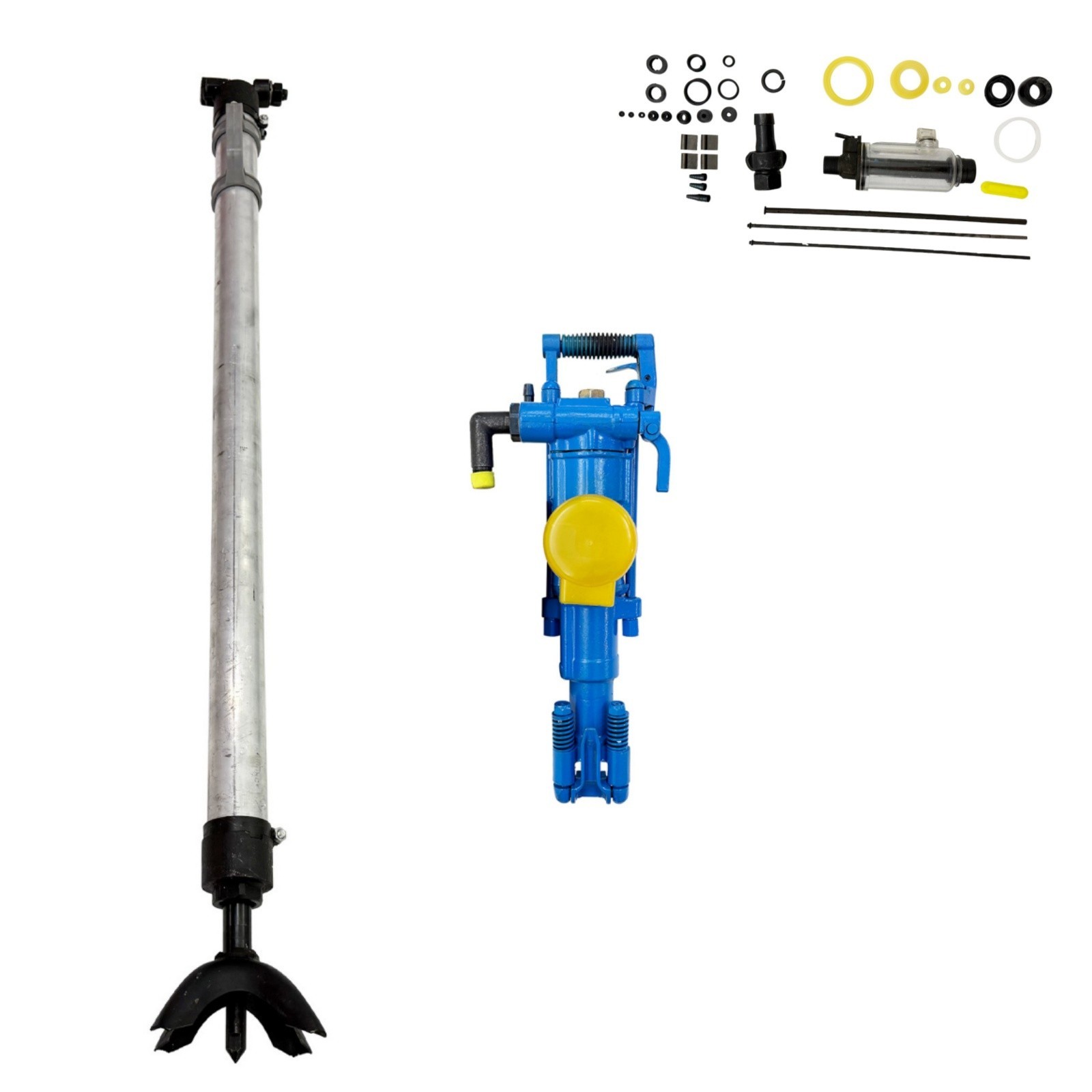

YT29 Rock Drill Tunnel Mining Special Pneumatic Rock Drill 5m Drilling Depth For Sale

YT29 Rock Drill · Technical Specification YT29 Rock Drill Tunnel Mining Special Pneumatic Rock Drill & Pneumatic Leg Product Overview

The pneumatic leg rock drill is a heavy-duty device for drilling rocks. It features high efficiency and low energy consumption, can drill horizontal and inclined holes in medium-hard and hard rocks can also drill upward anchor bolt holes. It can be equipped with a pneumatic leg, drill wagon or drill rig for dry or wet rock drilling. The pneumatic rock mill is particularly suitable for construction projects such as railways, highways and hydropower stations, and also serves as a replacement product for mine roadway excavation in metallurgy, coal mining and other industries, and various rock drilling operations.

Product Parameters YT29 Rock Mill Net weight29kg (63.9LBs) Cylinder diameter82mm (3.2in) Piston stroke60mm (2.3in) Working air pressure0.4-0.63MPa Applicable water pressure0.3MPa Applicable drilling diameter34-45mm (1.3-1.7 inches) Maximum drilling depth5m (16.4ft) Working temperature-30~45°C (-86~113°F) FT160C Pneumatic Leg Length170cm (67in) Weight12.5kg (27.5LBs) Precaution

• The machine is coated with anti-rust oil when leaving the factory. It should be disassembled and cleaned before use. When reassembling the machine, apply lubricating oil to the mating surfaces and run the machine at low speed for testing.
• When connecting air and water pipes, blow out any debris inside the pipes to prevent it from entering the machine body and affecting normal operation.
• Before supplying air and water, carefully ensure that all connections are secure and reliable to avoid accidental disconnection and injury.
• Fill the oiler with oil before starting the machine. Operating without lubrication is strictly prohibited.
• When using the machine on the site containing super-high levels of gas (methane), do not use low-flash-point flammable lubricants. The machine must not be run idle, as this could cause an explosion.
• Adjust the oil valve, and add oil approximately once per hour.
• During operation, pay special attention to the risk of sudden breakage of the drill steel (drill rod). Take care to avoid being crushed between the rock drill and the air leg.
• When the machine finishes working, shut off the water supply, and then run it at low speed for a short time to drain any accumulated water inside and prevent rusting.
• The air leg, oiler and muffler cover are controlled components subject to safety certification. Users must select these parts (components) from our company to match the main unit; otherwise, we shall not be liable for any resulting issues.
• The pneumatic rock drill will generate noise, vibration and dust during operation. Operators should take precautions and wear earmuffs (noise-canceling ear protectors).
• When used in coal mines or gas-containing environments, the outer tube of the air leg is strictly prohibited from violent impact, as this could generate sparks and cause an explosion.

Product Features Lifting Handle — designed for convenient holding, carrying and temporary hanging during and after use, buffers vibration and improves stability. Connectors — water/air connector for stable power supply, enabling wet type rock drilling. Operation Handle — controls start/stop, air/water linkage and air purging, convenient to adjust. Reset Springs — dual springs assist drill rod reset after impact, elastic and durable. Support — abuts against rock wall or tunnel roof, provides stable supporting force. Connecting Bend — quick air pipe connection, stable air supply for pneumatic leg. Operation Method

• Check the machine and ensure all parts are intact and the machine can operate normally.
• Connect the machine to the air supply and water supply and support the pneumatic leg on the ground.
• Adjust the pressure regulating valve to apply the appropriate thrust to the pneumatic leg.
• Control the operation valve handle to operate the machine to drill rocks.
• After drilling, close the operation valve, disconnect the impact and water path, slowly retract the pneumatic leg and stably move the rock mill out of the hole.
• Disconnect the water supply, run idle for a few seconds to drain the accumulated water in the machine.

Product Display Item Included (053315): 1 x Pneumatic Rock Drill You can make order with no worry.
