〖USA〗 550W 3/4HP 750W 1HP Servo Motor Control Kit for Industrial Sewing Machine For Sale

Package includes:

• 1 Set of 550W 110V AC Industrial Sewing Machine Servo Motor with Controller
• 1Pcs Foot Switch
• 1 Set of installation accessories
• English user manual

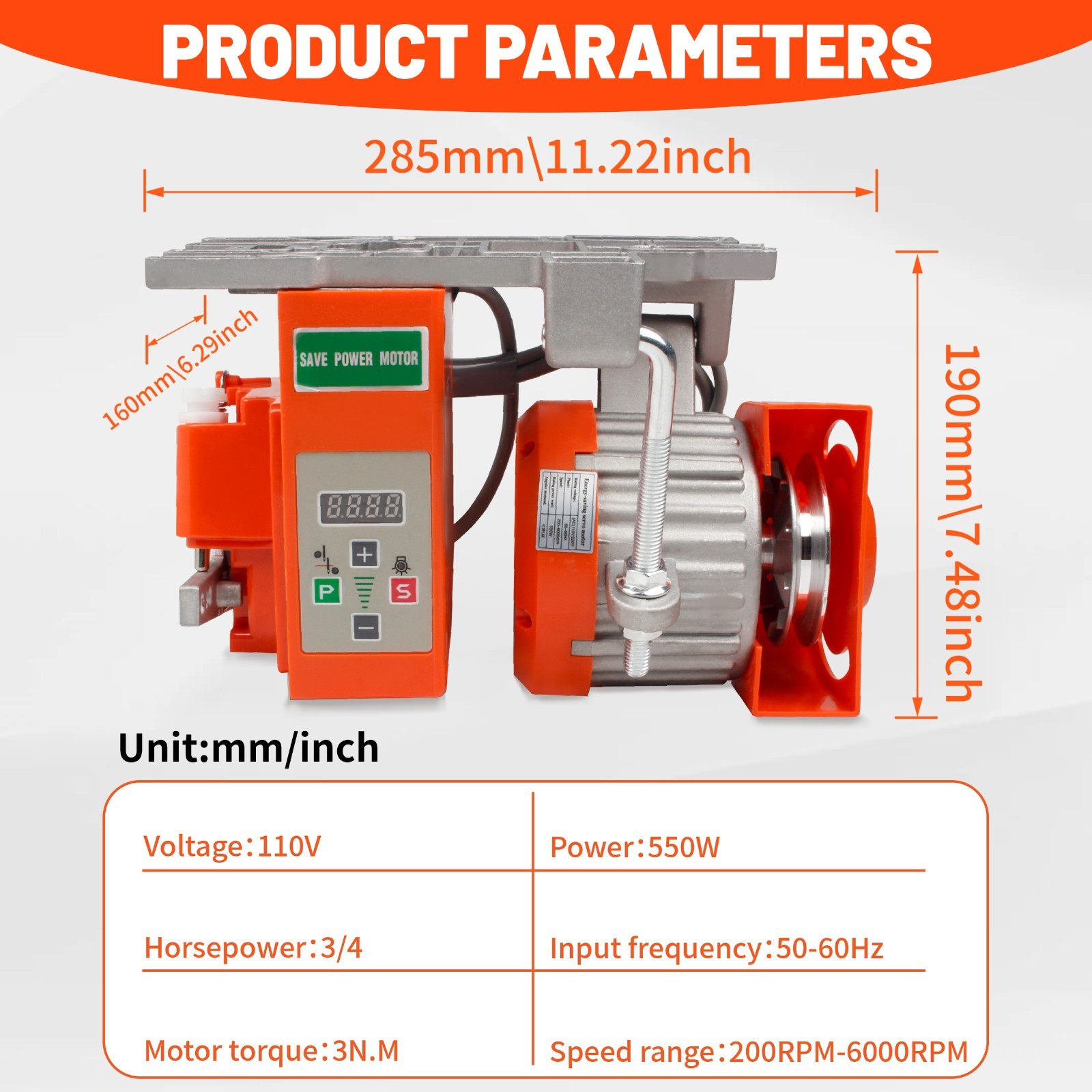

Specifications:

• Type: Sewing machine servo motor
• Power: 550W 3/4HP
• Voltage: AC110V
• Speed range: 200RPM-6000RPM (Revolutions Per Minute)
• Motor Torque: 3N.M
• Input Frequency: 50-60Hz
• Number of Motor Poles: 8 pole
• Motor Type: Permanent Magnet Brushless Servo Energy Saving Motor
• Insulation Class: Class F
• Control Method: Foot Pedal Speed Regulation
• Protection Modes: Over - current Protection, Over - voltage & Under - voltage Protection, Short - circuit Protection, Blocked Rotor is required for speeds above 4500 RPM, Max. is 6000 RPM.Please contact us for unlocking video tutorials.


  Applicable Machines by Power

  • 550W Applicable: Lockstitch Sewing Machines, Overlock Sewing Machines, Glove - making Machines etc
  Strong Power & Wide Speed Range
  • 550W high power ensures enough torque for thin/thick fabrics;
  • 200-6000RPM adjustable speed meets diverse sewing needs.
  • The precise manacturing process makes its structure uniform, which can accurately transmit the force from the foot control, enabling smooth and consistent control of the sewing machine's speed and operation.
  Safe & Versatile
  • Independent power switch + sensitive braking for safety;
  • fits high-speed sewing machines, flatbed machines, embroidery machines, etc.
  Easy & Precise Control
  • Clear "P/S/+/-" panel buttons; quick adjustment of needle position, speed, and LED light—suitable for pros and beginners.

  750W:


  Package includes:

  • 1 Set of 750W 110V AC Industrial Sewing Machine Servo Motor with Controller
  • 1Pcs Foot Switch
  • 1 Set of installation accessories
  • English user manual



  Specifications:

  • Type: Ssewing machine servo motor
  • Power: 750W 1HP
  • Voltage: AC110V
  • Speed range: 200RPM-6000RPM (Revolutions Per Minute)
  • Motor Torque: 5N.M
  • Input Frequency: 50-60Hz
  • Number of Motor Poles: 8 pole
  • Motor Type: Permanent Magnet Brushless Servo Energy Saving Motor
  • Insulation Class: Class F
  • Control Method: Foot Pedal Speed Regulation
  • Protection Modes: Over - current Protection, Over - voltage & Under - voltage Protection, Short - circuit Protection, Blocked Rotor Protection
  • 750W Applicable (for Thin Materials): Double - needle Sewing Machines (Thin Materials), Interlock Sewing Machines, Synchronous Sewing Machines (Thin Materials), Waistband Sewing Machines, Multi - needle Sewing Machines
  • 750W Applicable (for Thick Materials): Double - needle Sewing Machines (Thick Materials), Synchronous Sewing Machines (Thick Materials), High - head Sewing Machines, Bury - stitch Sewing Machines, Shoe - making Machines, Curved - arm Sewing Machines, Bull - horn Sewing Machines, Special - purpose Sewing Machines
  Strong Power & Wide Speed Range
  • 750W high power ensures enough torque for thin/thick fabrics;
  • 200-6000RPM adjustable speed meets diverse sewing needs.
  • The precise manacturing process makes its structure uniform, which can accurately transmit the force from the foot control, enabling smooth and consistent control of the sewing machine's speed and operation.
  Safe & Versatile
  • Independent power switch + sensitive braking for safety;
  • fits high-speed sewing machines, flatbed machines, embroidery machines, etc.
  Easy & Precise Control
  • Clear "P/S/+/-" panel buttons; quick adjustment of needle position, speed, and LED light—suitable for pros and beginners.
