【USA】550W 750W Brushed Lathe Motor 6000rpm 110V For Lathe 210 8"x16" 7"x14" 0618
Good News:We have USA Warehouse in United States,so we will ship this machine from USA to you directly.
Package List:
- 1 x 550W or 750W Mini Lathe Motor (Fit for 110VAC Lathe)
Note:
Important Design Note (Mounting Holes & Variant Distinction)
This listing offers 550W and 750W mini lathe motor variants with a key design difference in side-mounted threaded mounting holes:
550W Motor: Equipped with two side-mounted threaded mounting holes as shown in the picture.
750W Motor: NO side-mounted threaded mounting holes!
Easy Variant Identification: You can quickly tell the two models apart by the motor shaft length — the 750W motor has a longer shaft (40mm/1.57inch) vs. the 550W motor (20mm/0.8inch).
The motor cannot be directly connected to 110V AC power and must be converted to DC power through the lathe controller board!!!

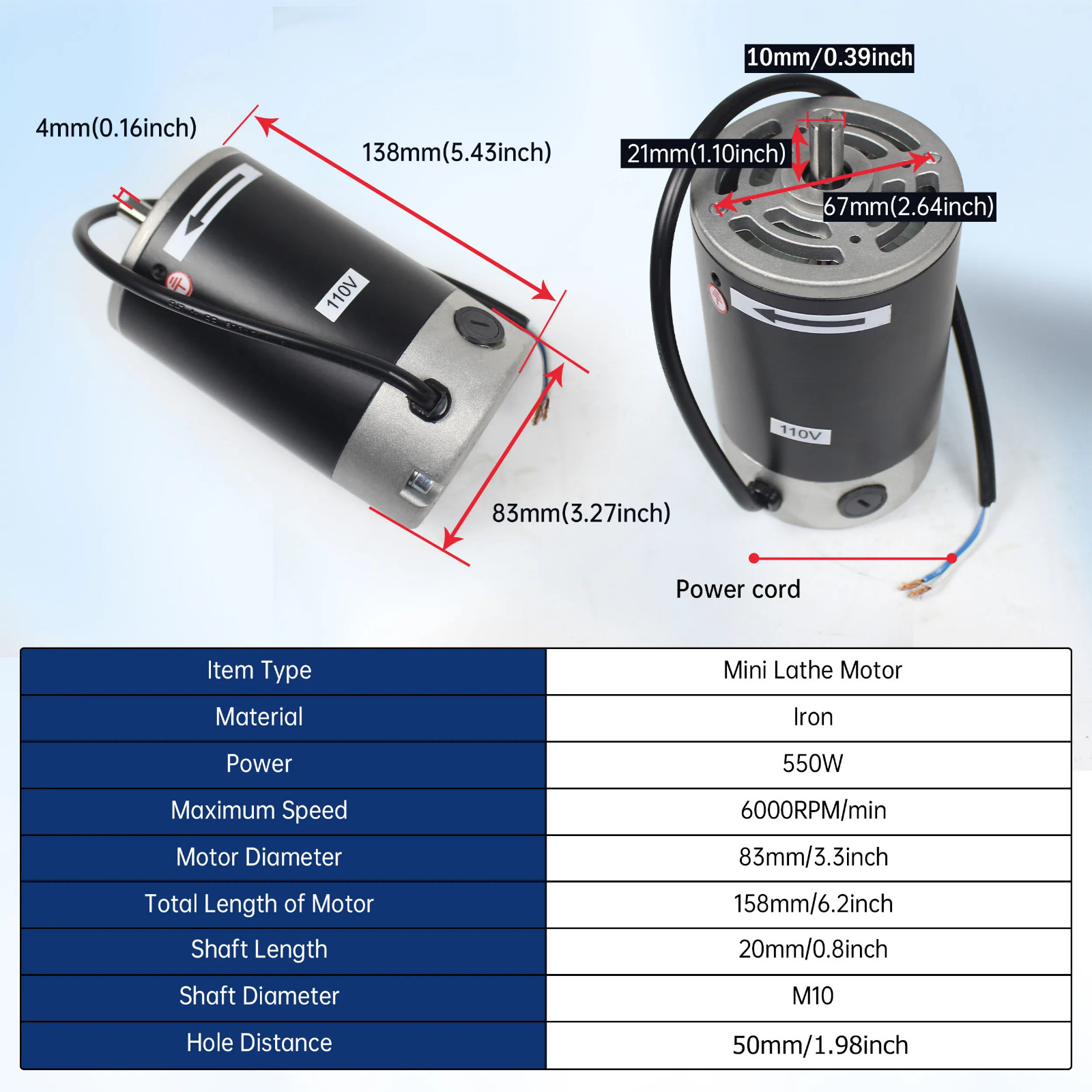

Product Description (550W 110V lathe motor)
This motor is made of high-quality iron material, which has high hardness, is not easily deformed, has good durability, and a long service life.
Application Models
- This motor is mainly used for 0618 3B 7x12" 7x14" 0618 CJ18A and other lathes,can fully compatible.
Specification:
- Item Type: Mini Lathe Motor
- Material: Iron
- Power: 550W
- Voltage: 110V (The motor cannot be directly connected to 110V AC power and must be converted to DC power through the controller board)
- Maximum Speed: 6000RPM per minute
- Motor Diameter: Approx. 83mm/3.3inch
- Total Length of Motor: Approx. 158mm/6.2inch
- Shaft Length: Approx. 20mm/0.8inch
- Shaft Diameter: M10
- Hole Distance: Approx. 50mm/1.96inch
How to use:
- Replace the motor on the machine directly.
Product Description (750W 110V lathe motor)
Package List:
- 1 x 750W Mini Lathe Motor 110V
This motor is made of high-quality iron material, which has high hardness, is not easily deformed, has good durability, and a long service life.
Application Models
- This motor is mainly used for 210 series 8x16" WM210V CD-210V 220x400 220x600 220x750 and other lathes,can fully compatible.
Specification:
- Item Type: Mini Lathe Motor
- Material: Iron
- Power: 750W
- Voltage: 110V (The motor cannot be directly connected to 110V AC power and must be converted to DC power through the controller board)
- Maximum Speed: 6000RPM
- Motor Diameter: 93mm / 3.66inch
- Total Length: Approx. 164mm / 6.5inch
- Shaft Length: Approx. 40mm / 1.57inch
- Shaft Diameter: M10
- Hole Distance: Approx. 73mm / 2.9inch
How to use:
- Replace the motor on the machine directly.
